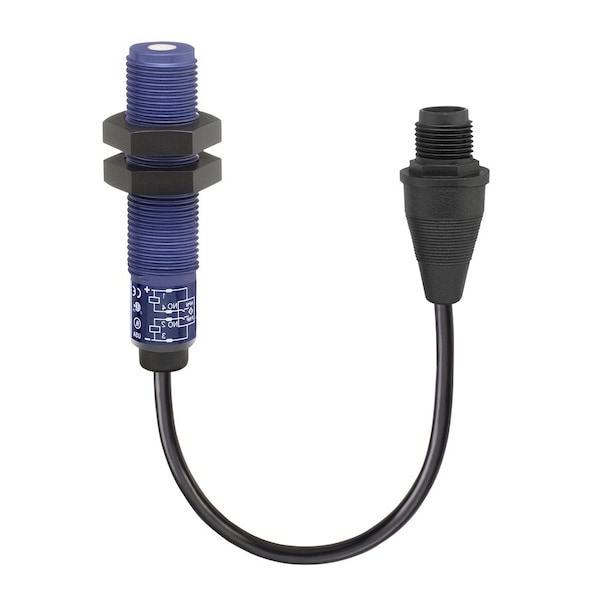

Sensor ultrasónico de 12 mm.
| Item | 12 Mm Ultrasonic Sensor |
|---|---|
| Electrical Connection | remote male connector M12 4 pins, 152 mm |
| Length | 53.08 mm |
| Width | 12 mm |
| Depth | 12 mm |
| Beam Angle | 8° |
| Material | Plastic |
| Enclosure Material | ULTEM |
| Height | 12 mm |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Type Of Sensing Window | configurable |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Sensor Type | ultrasonic sensor |
| Ip Degree Of Protection | IP67 |
| [Sn] Nominal Sensing Distance | 101.6-101.6 mm |
| Sensor Design | cylindrical M12 |
| Ambient Air Temperature For Storage | -40-100°C |
| Maximum Switching Current | 100 mA (reverse polarity protection) |
| Wiring Technique | 4-wire |
| Maximum Differential Travel | 0.7 mm |
| Front Material | epoxy |
| Repeat Accuracy | 0.007 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Blind Zone | 6.4-6.4 mm |
| [Us] Rated Supply Voltage | 12...24 V DC overload and short-circuit protection |
| Ambient Air Temperature For Operation | -30-70°C |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Transmission Frequency | 500 kHz |
| Series Name | Superprox + |
| Product Certifications | UL |
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm - up to 1 mm sensing distance |
| Supply Voltage Limits | 10-28 V DC |
| Marking | CE |
| Device Short Name | SC380 |
| Relative Humidity | 100-100 % without condensation |
| Current Consumption | 25 mA |
| Type Of Output Signal | discrete |
| Iso Thread | M12 x 1 |
| Product Specific Application | discrete proximity |
| Package Quantity | 1 |
