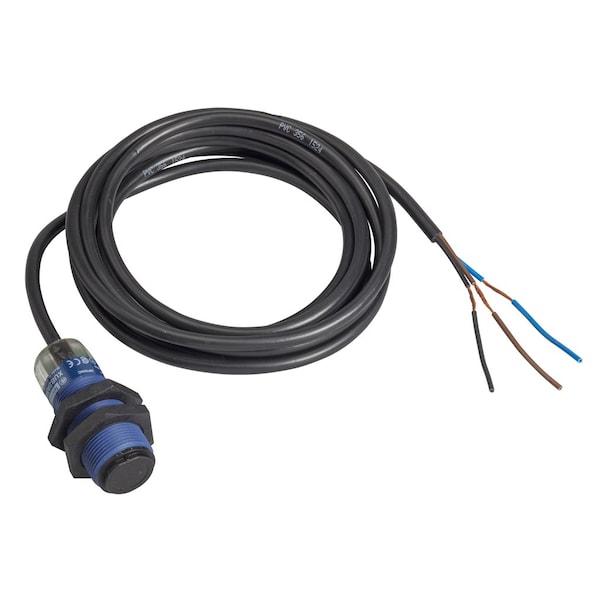

18 mm DC Receptor Frontal con Cable de 2 metros de plástico.
| Item | 18Mm Dc Recpnpfront 2M Cable Plastic No |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor, Photo-Electric Sensor M18 |
| Proximity Sensing Method | Infrared Thru Beam |
| Measurement Range | 15 to 20 m |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC Solida State PNP |
| Output Mode | 1 NO |
| Proximity Sensor Diameter | 18 mm |
| Length | 46 mm |
| Max. Detecting Distance | 20 m |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 500 Hz |
| Max. Current Load | 35 mA |
| IP Rating | IP67, IP65 |
| Standards | CSA; UL; CE Marked |
| Description/Special Features | Without Sensitivity Adjustment; 1 LED Yellowoutput State |
| Operating Temp. Range | -25 to 55 deg C |
| Application | general purpose single mode |
| Maximum Delay Recovery | 1 msec |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Delay Response | 1 msec |
| Maximum Voltage Drop | <1.5 V closed state) |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Supply Voltage Limits | 10-36 V DC |
| Maximum Delay First Up | 15 msec |
| Switching Capacity | <= 100 mA overload and short-circuit protection) |
| Series | XUB |
| Storage Temp. Range | -40-70 °C |
| Package Quantity | 1 |
