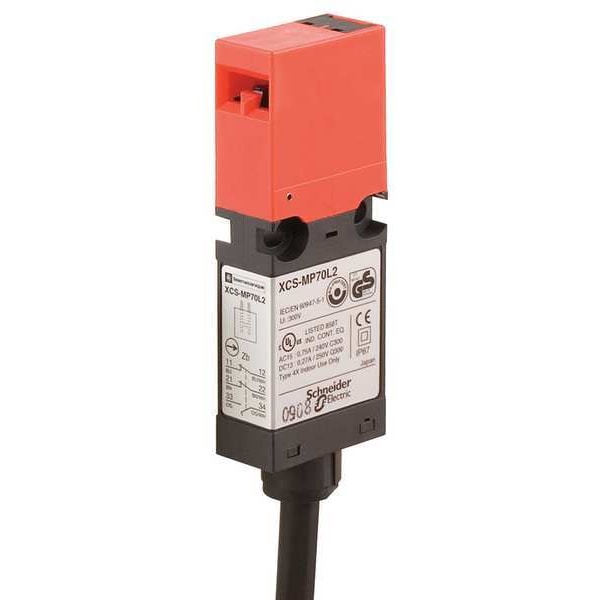

Interruptor de seguridad con 1NC/1NO Nema 4, 4X, 12 IP 67.
| Item | Safety Interlock Switch |
|---|---|
| AC Contact Rating | 0.75 A @ 240 V, 1.5 A @ 120 V |
| DC Contact Rating | 0.27 A @ 250 V, 0.55 A @ 125 V |
| Contact Form | 1NO/1NC |
| IP Rating | IP67 |
| Series | XCSMP |
| NEMA Rating | 12, 4, 4X |
| Operating Temp. Range | -13 to 158 deg F |
| Body Material | Polyamide |
| Operating Force | 1.8 lb |
| Depth | 3.42 in |
| Cable Length | 6.6 ft |
| Actuator Length | Key Dependent |
| Head Material | Polyamide |
| Height | 0.59 in |
| Style | Actuating Key |
| Connection Type | Dead End Cable |
| Description/Special Features | Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight |
| Width | 1.18 in |
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508 |
| Material | Plastic |
| Electrical Connection | 6.6 ft Dead End Cable |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Head Type | key operated fixed head |
| Vibration Resistance | 6 gn 10-55 Hz)IEC 60068-2-6 |
| Mechanical Durability | 1,000,000 cycle |
| NEMA Enclosure Rating | 12, 4, 4X |
| Circuitry Action | Slow Action |
| Overall Depth | 1.18 in |
| Actuator Material | Plastic |
| Overall Width | 0.59 in |
| Operating Temperature - Minimum | -13 deg F |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight |
| Operating Temperature - Maximum | 158 deg F |
| Overall Height | 3.43 in |
| Manufacturer Warranty Length | 18 mo |
| Mechanical Operating Durability | 1,000,000 |
| Actuating Key Type | Pivoting, Flat |
| Design | miniature |
| Protective Treatment | TC |
| Actuator Forcible Withdrawal Rtc | 8 N |
| Ambient Air Temperature For Storage | -25-80°C |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Maximum Actuation Speed | 1.5 m/sec |
| Maximum Operating Rate | 20 cyc/mn for maximum durability |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Minimum Actuator Force For Extraction | 8 N |
| Minimum Actuation Speed | 0.05 m/sec |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Insulation | double insulated |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| Number Of Poles | 2 |
| Component Name | XCSMP |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Cable Composition | 4 mm² x 0.5 mm² |
| Product Certifications | CSA || UL || cUL |
| Positive Opening | with NC contact |
| Contacts Type And Composition | 1 NC + 1 NO |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 || 1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1 |
| [Ithe] Conventional Enclosed Thermal Current | 2.5 A |
| Contact Operation | slow-break, break before make |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Or Component Type | safety switch |
| Package Quantity | 1 |
