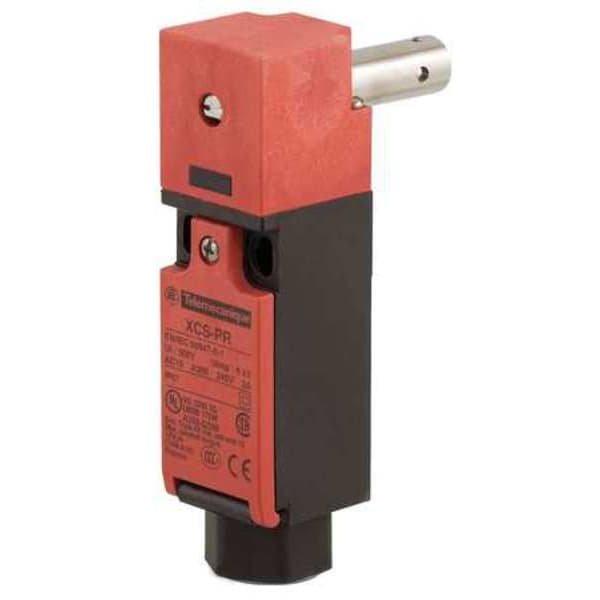

El interruptor de interbloqueo de seguridad 1NC/1NO Nema 4, 4X, 12 IP 67 de Telemecanique Sensors proporciona protección en entornos industriales. Fabricado con los más altos estándares de calidad y resistencia.
| Item | Safety Interlock Switch |
|---|---|
| Style | Rotary Shaft |
| Series | XCSPR |
| Actuator Length | 1.18 in |
| AC Contact Rating | 6 A @ 300 V |
| DC Contact Rating | 0.55 A @ 300 V |
| Contact Form | 1NO/1NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 2.36 in |
| Width | 1.18 in |
| Depth | 4.61 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 158 deg F |
| Description/Special Features | Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight |
| Standards | BG, CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/ISO 12100, UL 508 |
| Body Material | Plastic |
| NEMA Rating | 12, 4, 4X |
| Conduit Size | 1/2 in NPT |
| Operating Force | 0.18 ft-lb |
| Electrical Connection | 1/2 in NPT Conduit |
| Material | Plastic |
| Head Type | turret head rotary axis |
| Mechanical Durability | 1,000,000 cycle |
| Vibration Resistance | 50 gn 10-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Maximum | 158 deg F |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight |
| Operating Torque | 2.16 in-lb |
| NEMA Enclosure Rating | 12, 4, 4X |
| Overall Width | 1.18 in |
| Mechanical Operating Durability | 1,000,000 |
| Circuitry Action | Slow Action |
| Overall Depth | 2.36 in |
| Overall Height | 3.78 in |
| Clamping Connection Capacity | 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Number Of Poles | 2 |
| Product Certifications | CSA || UL || BG |
| Enclosure Material | polyamide PA66 fibre glass impregnated |
| Protective Treatment | TC || TH |
| Product Or Component Type | guard switch |
| Maximum Resistance Across Terminals | 30 mOhm EN/IEC 60947-5-4 |
| Type Of Operator | spindle 30 mm |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 300 VCSA C22.2 No 14 || 500 V 3)EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Cable Outer Diameter | 7 to 10 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Positive Opening Minimum Torque | 0.25 N-m |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Tripping Angle | 5° |
| Lever Material | stainless steel |
| Minimum Torque For Tripping | 0.1 N-m |
| Component Name | XCSPR |
| Contact Code Designation | A300, AC-15 (Ue = 120 V, Ie = 6 A)EN/IEC 60947-5-1 || A300, AC-15 (Ue = 240 V, Ie = 3 A)EN/IEC 60947-5-1 || Q300, DC-13 (Ue = 125 V, Ie = 0.55 A)EN/IEC 60947-5-1 || Q300, DC-13 (Ue = 250 V, Ie = 0.27 A)EN/IEC 60947-5-1 |
| Contacts Type And Composition | 1 NC + 1 NO |
| Positive Opening | with NC contact |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508 |
| Cable Entry | 1 entry tapped 1/2" NPT |
| Ambient Air Temperature For Storage | -40-70°C |
| Insulation | double insulated |
| Contact Operation | slow-break, break before make |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Package Quantity | 1 |
