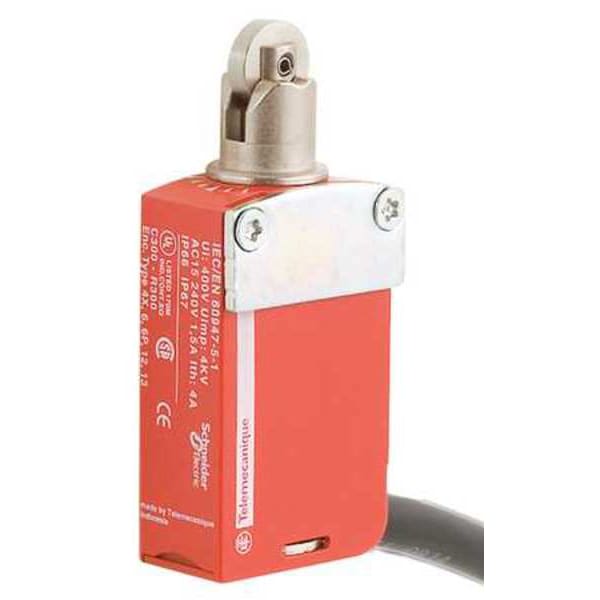

Interruptor de interbloqueo de seguridad con 1NC/1NO y pulsador, con clasificación IP 66, 67, 68. Ideal para aplicaciones industriales y entornos exteriores.
| Item | Safety Interlock Switch |
|---|---|
| Style | Steel Roller Plunger |
| Series | XCSM |
| Actuator Length | 0.8 in |
| AC Contact Rating | 1.5 A @ 300 V |
| DC Contact Rating | 0.1 A @ 300 V |
| Contact Form | 1NC/1NC/1NO |
| Connection Type | Dead End Cable |
| Height | 2.77 in |
| Width | 1.18 in |
| Depth | 0.63 in |
| IP Rating | IP67, IP66, IP68 |
| Operating Temp. Range | -13 to 158 deg F |
| Actuator Style | Plunger, Roller |
| Standards | CSA C22.2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508 |
| Description/Special Features | Plastic Cover, Secured by 5-Lobe Socket Head Safety Screw, Plunger Head |
| Cable Length | 6.6 ft |
| Movement | Horizontal |
| Body Material | Zamak |
| Operating Force | 7.9 lb |
| Head Material | Zamak |
| Electrical Connection | 6.6 ft Dead End Cable |
| Material | Metal |
| Features | Plunger Head, Includes 5-Lobe Socket Head Safety Screw |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Head Type | plunger head |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Mechanical Operating Durability | 10,000,000 |
| Overall Depth | 0.63 in |
| Overall Width | 1.18 in |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Actuator Material | Metal |
| Circuitry Action | Slow Action |
| Overall Height | 2.76 in |
| Number Of Poles | 3 |
| Ambient Air Temperature For Operation | -25-70°C |
| Minimum Force For Tripping | 7 N |
| Cable Composition | 7 mm² x 0.5 mm² |
| Positive Opening Minimum Force | 35 N |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
| Fixing Mode | by the body |
| Electrical Shock Protection Class | class I NF C 20-030 || class I EN/IEC 61140 |
| Design | miniature |
| Protection Technology | plastic protective cover, secured by 5-lobe socket head safety screw |
| Switch Actuation | by 30° cam |
| Positive Opening | with NC contact |
| Component Name | XCSM |
| Product Certifications | UL || CSA |
| Ik Degree Of Protection | IK06 EN 50102 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529 |
| Protective Treatment | TC |
| Contacts Type And Composition | 1 NC + 1 NC + 1 NO |
| Type Of Approach | lateral approach |
| Maximum Actuation Speed | 0.5 m/sec |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| Minimum Actuation Speed | 6 m/min |
| Product Or Component Type | safety limit switch |
| Contact Operation | slow-break, break before make |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 400 V 3)IEC 60947-5-1 || 300 VCSA C22.2 No 14 |
| Type Of Operator | plunger |
| Short-Circuit Protection | 6 A cartridge fuse gG (gl) |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Code Designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN 60947-5-1 || B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN 60947-5-1 || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A |
| Repeat Accuracy | 0.05 mm on the tripping points |
| Package Quantity | 1 |
