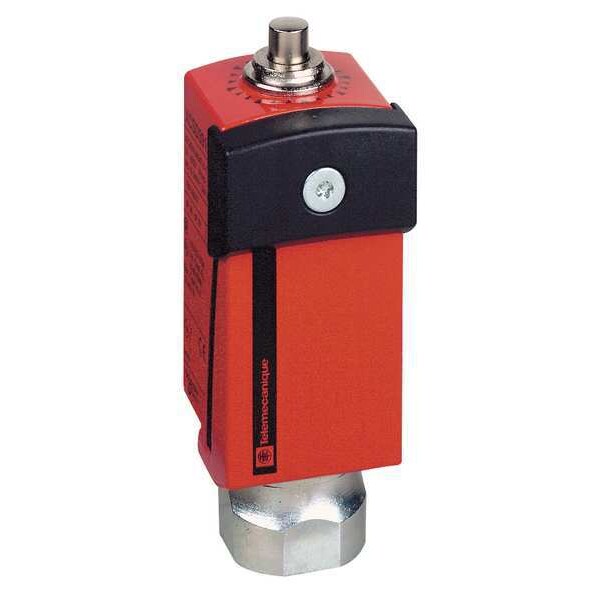

Interruptor de interbloqueo de seguridad con émbolo 1NC/1NO IP66, 67 para aplicaciones industriales. Cumple con estándares de seguridad y resistencia.
| Item | Safety Interlock Switch |
|---|---|
| Style | Metal Plunger |
| Series | XCSD |
| Actuator Length | 0.39 in |
| AC Contact Rating | 1.5 A @ 300 V |
| DC Contact Rating | 0.1 A @ 300 V |
| Contact Form | 1NC/1NC/1NO |
| Connection Type | 1/2 in NPT Conduit |
| Height | 3.51 in |
| Width | 1.18 in |
| Depth | 1.36 in |
| IP Rating | IP67, IP66 |
| Operating Temp. Range | -13 to 158 deg F |
| Conduit Size | 1/2 in NPT |
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508 |
| Movement | Vertical |
| Body Material | Zamak |
| Actuator Style | Plunger |
| Operating Force | 15 N |
| Head Material | Zamak |
| Description/Special Features | 15 N Minimum Force for Tripping, Plastic Enclosure, Poditive Opening Contacts |
| Material | Metal |
| Electrical Connection | 1/2 in NPT Conduit |
| Features | Positive Opening Contacts |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Head Type | plunger head |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Mechanical Durability | 15,000,000 cycle |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Circuitry Action | Slow Action |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Manufacturer Warranty Length | 18 mo |
| Mechanical Operating Durability | 15,000,000 |
| Overall Width | 1.34 in |
| Overall Height | 3-1/2 in |
| Actuator Material | Metal |
| Overall Depth | 1.38 in |
| Cable Entry | 1 entry tapped 1/2" NPT |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 || 4 kV IEC 60664 |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508 |
| Type Of Approach | on end approach |
| Enclosure Material | Plastic |
| Product Or Component Type | safety limit switch |
| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree Of Protection | IK06 EN 50102 |
| Positive Opening | with NC contact |
| Minimum Force For Tripping | 15 N |
| Number Of Poles | 3 |
| Contact Operation | slow-break, break before make |
| Positive Opening Minimum Force | 45 N |
| Repeat Accuracy | 0.1 mm on tripping points, 1 million operating cycles for head with end plunger |
| Product Certifications | UL || CSA |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
| Contacts Type And Composition | 1 NC + 1 NC + 1 NO |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Short-Circuit Protection | 6 A cartridge fuse gG (gl) |
| Design | compact |
| Ambient Air Temperature For Operation | -25-70°C |
| Protective Treatment | TC |
| Protection Technology | plastic protective cover, secured by 5-lobe socket head safety screw |
| Component Name | XCSD |
| Maximum Actuation Speed | 0.5 m/sec |
| Contact Code Designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A |
| Type Of Operator | plunger |
| Electrical Shock Protection Class | class I NF C 20-030 || class I EN/IEC 61140 |
| Minimum Actuation Speed | 0.01 m/sec |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Clamping Connection Capacity | 1 x 0.34...2 x 0.75 mm² |
| Package Quantity | 1 |
