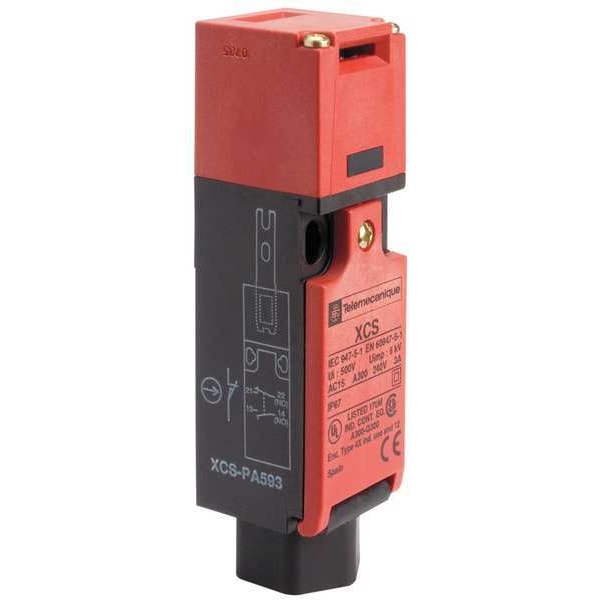

Interruptor de seguridad de interbloqueo 2NC Nema 4, 4X, 12 IP 67.
| Item | Safety Interlock Switch |
|---|---|
| Style | Actuating Key |
| Series | XCSPA |
| Actuator Length | Key Dependent |
| AC Contact Rating | 10 A @ 300 V |
| DC Contact Rating | 6 A @ 300 V |
| Contact Form | 2NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 1.18 in |
| Width | 1.18 in |
| Depth | 4.21 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 158 deg F |
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508 |
| Conduit Size | 1/2 in NPT |
| Description/Special Features | Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight |
| NEMA Rating | 12, 4, 4X |
| Operating Force | 0.18 ft-lb |
| Body Material | Polyamide |
| Electrical Connection | 1/2 in NPT Conduit |
| Head Material | PA |
| Material | Plastic |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Head Type | key operated turret head |
| Mechanical Durability | 1,000,000 cycle |
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Protective Treatment | TC |
| Number Of Poles | 2 |
| Contact Operation | slow-break, simultaneous |
| Minimum Actuation Speed | 0.01 m/sec |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Cable Entry | 1 entry tapped 1/2" NPT |
| Product Or Component Type | safety switch |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Positive Opening Minimum Force | 15 N |
| Contacts Type And Composition | 2 NC |
| Ambient Air Temperature For Operation | -25-70°C |
| Design | compact |
| Component Name | XCSPA |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Product Certifications | CSA || UL |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Ambient Air Temperature For Storage | -40-70°C |
| Positive Opening | with NC contact |
| Maximum Actuation Speed | 0.5 m/sec |
| Actuator Forcible Withdrawal Rtc | 10 N |
| Insulation | double insulated |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Actuator Material | Plastic |
| Operating Torque | 2.16 in-lb |
| Overall Height | 4.21 in |
| Overall Depth | 1.18 in |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight |
| Overall Width | 1.18 in |
| Mechanical Operating Durability | 1,000,000 |
| Manufacturer Warranty Length | 18 mo |
| Circuitry Action | Slow Action |
| NEMA Enclosure Rating | 12, 4, 4X |
| Operating Temperature - Minimum | -13 deg F |
| Actuating Key Type | Pivoting, Flat |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
