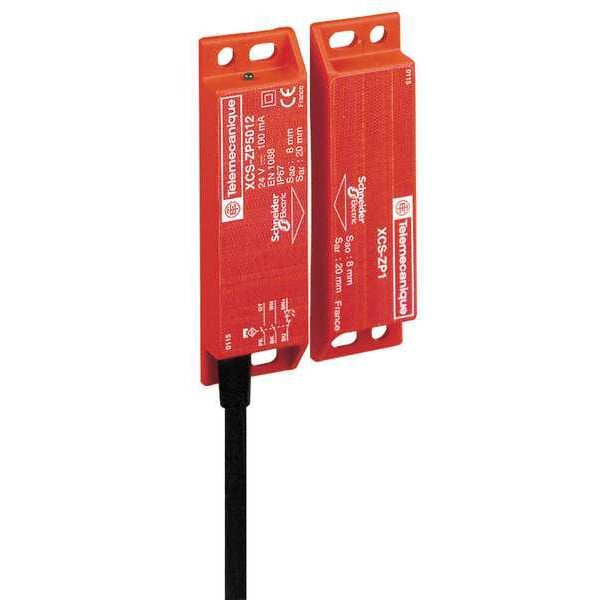

Interruptor de bloqueo de seguridad activado magnéticamente 2NC/1NO
| Item | Magnetically Actuated Safety Interlock Switch |
|---|---|
| Series | XCSDM |
| DC Contact Rating | 0.1 A @ 24 V |
| Contact Form | 1NO, 2NC |
| Height | 88 mm |
| Width | 25 mm |
| Depth | 13 mm |
| IP Rating | IP67, IP66 |
| Operating Temp. Range | -13 to 185 deg F |
| Actuator Height | 3.46 in |
| Switch Width | 0.98 in |
| Switch Depth | 0.52 in |
| Description/Special Features | With LED |
| Switch Height | 3.46 in |
| Actuator Depth | 0.52 in |
| Actuator Width | 0.98 in |
| Includes | Actuator |
| Body Material | Plastic |
| Off Sensing Distance | 0.79 in |
| Cable Length | 6.56 ft |
| Termination Type | Pre-Cabled |
| Standards | CSA, RoHS, UL Listed |
| On Sensing Distance | 0.31 in |
| Material | Plastic |
| Electrical Connection | pre-cabled |
| Electrical Durability | 1200000 cycles |
| Shock Resistance | 30 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 10 gn 10-150 Hz)IEC 60068-2-6 |
| Enclosure Material | thermoplastic PBT |
| Number Of Poles | 3 |
| Protective Treatment | TH |
| [Ue] Rated Operational Voltage | 24 V DC |
| Local Signalling | 1 LED |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Ambient Air Temperature For Operation | -25-85°C |
| Insulation Resistance | 1000 MOhm |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Breaking Capacity | 3 VA |
| Ambient Air Temperature For Storage | -40-85°C |
| Contact Operation | 1 NC staggered |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-5-1 |
| [Sa] Assured Operating Distance | 8 mm |
| Resistance Across Terminals | 57 ohms |
| Maximum [Ie] Rated Operational Current | 100 mA |
| Short-Circuit Protection | 500 mA external cartridge fuse gG (gl) |
| Maximum Switching Voltage | 100 V DC |
| Product Or Component Type | coded magnetic switch |
| Product Certifications | CSA || UL |
| Cable Material | PVC |
| Maximum Sensitivity To Magnetic Fields | 0.3 mT |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Contacts Type And Composition | 2 NC + 1 NO |
| Contacts Material | rhodium |
| Switching Capacity In Ma | 5...100 mA |
| Switching Frequency | 150 Hz |
| Size | 88 x 25 x 13 mm |
| Component Name | XCSDMP |
| [Ui] Rated Insulation Voltage | 100 V DC |
| [Sar] Assured Tripping Distance | 20 mm |
| Approach Directions | 3 directions |
| Design | rectangular, standard |
| Cable Composition | 6 mm² x 0.25 mm² |
| Switch Type | Coded Switch |
| Indicating Light | LED |
| Body Style | Rectangular |
| Manufacturer Warranty Length | 18 mo |
| On Sensing Distance - Maximum | 0.31 in |
| Overall Width | 0.98 in |
| Magnet Actuator Depth | 0.52 in |
| Operating Temperature - Maximum | 185 deg F |
| Magnet Actuator Width | 0.98 in |
| Magnet Actuator Height | 3.46 in |
| Off Sensing Distance - Maximum | 0.79 in |
| Overall Depth | 0.51 in |
| Operating Temperature - Minimum | -13 deg F |
| Overall Height | 3.46 in |
| Package Quantity | 1 |
