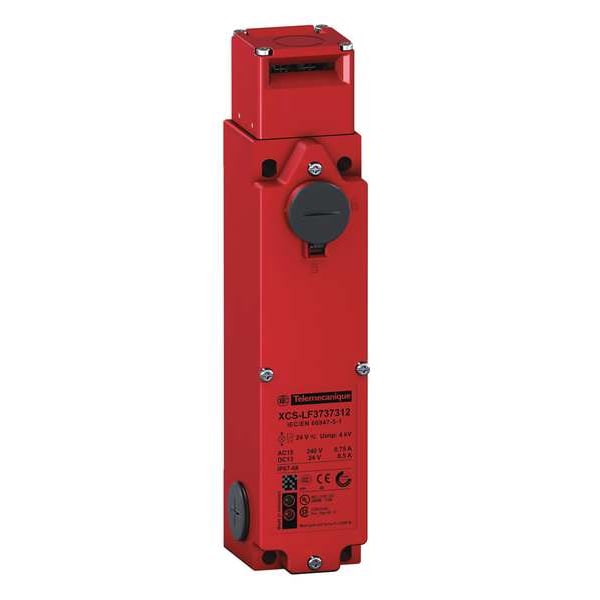

Interruptor de seguridad de 2 contactos normalmente cerrados y 1 contacto normalmente abierto, grado de protección IP 67.
| Item | Safety Interlock Switch |
|---|---|
| AC Contact Rating | 0.75 A @ 240 V |
| DC Contact Rating | 0.55 A @ 24 V |
| Solenoid Voltage | 24 V AC/DC |
| Contact Form | 1NO/2NC |
| IP Rating | IP67, IP66 |
| Style | Metal Locking |
| Description/Special Features | 300 Solenoid Contacts |
| Operating Force | 4.5 lb Unlocked, 517 lb Locked |
| Depth | 2.01 in |
| Width | 1.71 in |
| Series | XCSLF |
| Operating Temp. Range | -13 to 140 deg F |
| Conduit Size | 1/2 in NPT |
| Connection Type | 1/2 in NPT Conduit |
| Head Material | Zamak |
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 62061, EN/ISO 13849-1, UL 508 |
| Height | 8.07 in |
| Body Material | Zamak |
| Electrical Connection | 1/2 in NPT Conduit |
| Features | 300 Solenoid Contacts |
| Material | Metal |
| Head Type | key operated turret head |
| Mechanical Durability | 1,000,000 cycle |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Operating Temperature - Maximum | 158 deg F |
| Mechanical Operating Durability | 1,000,000 |
| Overall Width | 1.73 in |
| Actuating Key Type | Pivoting, Flat |
| Overall Depth | 2.01 in |
| Operating Temperature - Minimum | -13 deg F |
| Overall Height | 8.07 in |
| Actuator Material | Metal |
| Circuitry Action | Slow Action |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Component Name | XCSLF |
| Supply Voltage Type | AC/DC |
| Solenoid Contacts Type And Composition | 2 NC + 1 NO slow-break, break before make |
| Supply Frequency | 50/60 Hz |
| Signalling Circuit Type | AC, DC |
| Maximum Load Current | <= 15 A |
| Maximum Actuation Speed | 0.5 m/sec |
| Ip Degree Of Protection | IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 || IP67 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
| Positive Opening | with NC contact |
| Short-Circuit Protection | 4 A cartridge fuse gG (gl) || 6 A fast blow |
| Minimum Switching Current | 10 mA at 20°C |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-5-1 |
| Cable Entry | 3 entries tapped 1/2" NPT |
| Maximum Actuator Forcible Withdrawal Rtc | 3,000 N |
| Electromagnet Interlocking | locking on de-energisation and unlocking on energisation of solenoid |
| Minimum Switching Voltage | 17 V |
| Local Signalling | for actuator withdrawn 1 LED (orange) || for actuator inserted and locked 1 LED (green) |
| Number Of Poles | 3 |
| Load Factor | 1 |
| Protective Treatment | TC |
| [Ithe] Conventional Enclosed Thermal Current | 4 A |
| Resistance To Mechanical Impact | 9.6 J against the partition || 6.4 J without partition |
| Minimum Actuation Speed | 0.01 m/sec |
| Design | slim |
| Ambient Air Temperature For Operation | -25-60°C |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 300 VCSA C22.2 No 14 || 250 V 3)EN/IEC 60947-1 |
| [Us] Rated Supply Voltage | 24 V - 15...10 % |
| Product Or Component Type | safety switch |
| Ambient Air Temperature For Storage | -40-70°C |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| [Ie] Rated Operational Current | 0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 |
| Contact Operation | slow-break, break before make |
| Product Certifications | UL || TUV || CSA |
| Minimum Actuator Force For Extraction | 20 N |
| Contacts Type And Composition | 2 NC + 1 NO |
| Signalling Circuit Voltage | 24 V |
| Package Quantity | 1 |
