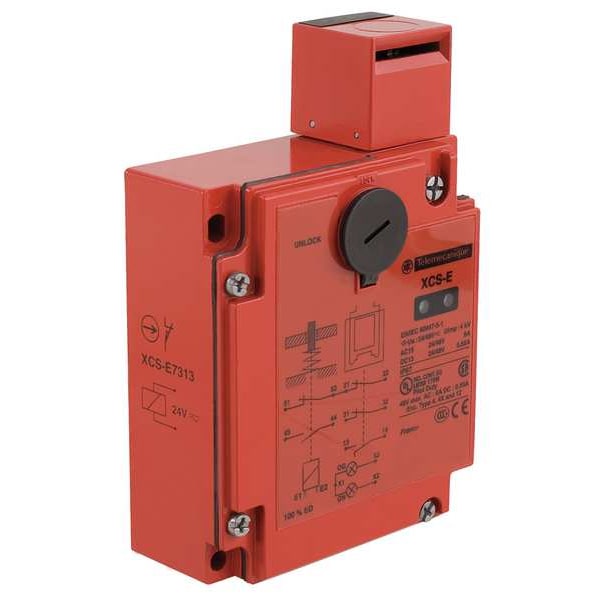

Interruptor de seguridad de dos contactos normalmente cerrados y un contacto normalmente abierto Nema 4, 4X, 12 IP67.
| Item | Safety Interlock Switch |
|---|---|
| AC Contact Rating | 6 A @ 300 V |
| DC Contact Rating | 3 A @ 300 V |
| Solenoid Voltage | 24 V AC/DC |
| Contact Form | 1NO/2NC |
| IP Rating | IP67 |
| Width | 3.86 in |
| Operating Temp. Range | -13 to 158 deg F |
| Description/Special Features | Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Orange LED - Green LED Pilot Light, Water Tight |
| Depth | 5-3/4 in |
| Head Material | Zamak |
| Height | 1.73 in |
| Body Material | Zamak |
| Style | Actuating Key, Solenoid Locking |
| Conduit Size | 1/2 in NPT |
| NEMA Rating | 12, 4, 4X |
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508 |
| Actuator Length | Key Dependent |
| Series | XCSE |
| Connection Type | 1/2 in NPT Conduit |
| Operating Force | 4.5 lb |
| Material | Metal |
| Electrical Connection | 1/2 in NPT Conduit |
| Features | (2) LED Pilot Lights (Green/Orange) |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Mechanical Durability | 1,000,000 cycle |
| Head Type | key operated turret head |
| Manufacturer Warranty Length | 18 mo |
| Actuating Key Type | Pivoting, Flat |
| Mechanical Operating Durability | 1,000,000 |
| Overall Depth | 1.73 in |
| NEMA Enclosure Rating | 12, 4, 4X |
| Overall Width | 3.86 in |
| Circuitry Action | Slow Action |
| Overall Height | 5-3/4 in |
| Actuator Material | Metal |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight |
| Supply Voltage Type | AC/DC |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Product Or Component Type | safety switch |
| Maximum Actuation Speed | 0.5 m/sec |
| Signalling Circuit Voltage | 24/48 V 20...52 V) |
| Signalling Circuit Consumption | 7 mA |
| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| Solenoid Contacts Type And Composition | 1 NC + 1 NO slow-break, simultaneous |
| Protective Treatment | TC |
| Contacts Type And Composition | 2 NC + 1 NO |
| Product Certifications | UL || CSA |
| Ambient Air Temperature For Operation | -25-40°C |
| Minimum Actuation Speed | 0.01 m/sec |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Signalling Circuit Type | AC, DC |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Power Consumption In Va | 10 VA inrush || 10 VA sealed |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 |
| Contact Operation | slow-break, break before make |
| Ambient Air Temperature For Storage | -40-70°C |
| Component Name | XCSE |
| Number Of Poles | 3 |
| Local Signalling | for guard open/guard closed and locked 2 LEDs (green or orange) |
| [Ui] Rated Insulation Voltage | 50 VEN/IEC 60947-1 signalling circuit |
| Actuator Forcible Withdrawal Rtc | 2,000 N |
| Cable Entry | 2 entries tapped 1/2" NPT |
| Electromagnet Interlocking | locking on de-energisation and unlocking on energisation of solenoid |
| Load Factor | 1 |
| Minimum Actuator Force For Extraction | 20 N |
| [Us] Rated Supply Voltage | 24 V - 20...10 % |
| Protection Type | overvoltage protection signalling circuit |
| Positive Opening | with NC contact |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| Supply Frequency | 50/60 Hz |
| Design | rectangular |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
| Package Quantity | 1 |
