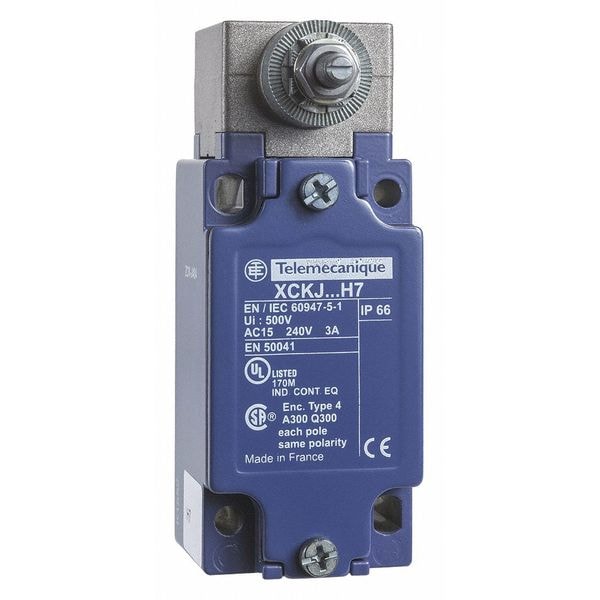

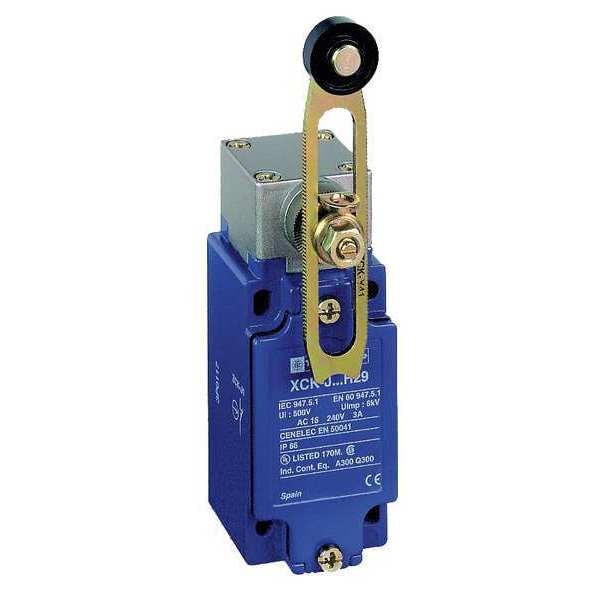

Interruptor de límite de alta resistencia con cabeza rotativa de 2NC/2NO IP 66.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Contact Form | DPDT |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Depth | 1.73 in |
| Actuator Location - Limit Switch | Side |
| Height | 4.29" |
| AC Contact Rating - Limit Switch | 10A @ 600V |
| DC Contact Rating - Limit Switch | 10A @ 600V |
| AC Contact Rating | 10 A @ 600 V |
| Width | 1.67 in |
| Body Style - Limit Switch | Standard |
| DC Contact Rating | 10 A @ 600 V |
| Mounting - Limit Switch | Surface |
| Body Style (Limit Switch) | Standard |
| Stem Thread - Limit Switch | No Stem |
| Body Width - Limit Switch | 1.57 in |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Electrical Connection | Screw Clamp Terminals |
| Voltage Rating | 600VAC/VDC |
| Amps | 10 |
| Limit Switch Style | Heavy Duty Limit Switch |
| Contact Form - Limit Switch | 2NC/2NO |
| Basic Actuator Style (Limit Switch) | Rotary |
| Actuator Location (Limit Switch) | Side |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Body Material | Metal |
| Mounting Hole Pattern - Limit Switch | 4 Hole Rectangular |
| Wiring Entry | 1/2 in NPT |
| Standards | EN 50041, EN 50047, IEC |
| Travel | Total Travel 90 Degrees |
| Operating Force | 2.21 in-lb |
| Series | ZCKJ |
| Body Depth - Limit Switch | 2.36 in |
| IP Rating | IP66 |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Boot Sealed Actuator - Limit Switch | No |
| Operating Temp. Range | -13 to 158 deg F |
| Actuator Style | Rotary Lever |
| Movement | CCW, CW |
| Body Height - Limit Switch | 4.01 in |
| Actuator Location | Side |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Type And Composition | O, 2 C |
| Series Name | standard format |
| Number Of Poles | 2 |
| Contacts Material | silver plated contacts |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP66 |
| Device Short Name | ZCKJ |
| Ambient Air Temperature For Operation | -40-70°C low temperature |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Product Or Component Type | limit switch body |
| Contact Operation | snap action |
| Minimum Actuation Speed | 0.01 m/min |
| Positive Opening | without |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Switch Actuation | from left and right |
| Body Type | fixed |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Terminals Description Iso N°1 | NO || NC || NC || NO |
| Number Of Steps | 2 3 positions |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Environmental Characteristic | low temperature |
| Product Compatibility | XCKJ |
| Ik Degree Of Protection | IK07 |
| Cable Entry | 1 entry tapped for 1/2" NPT conduit |
| Terminals Description Iso N°1 | NO || NC || NC || NO |
| Directional Movement | CCW/CW |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4 |
| Overall Width | 1.69 in |
| Operating Temperature - Minimum | -40 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Total Travel | 90 Degrees |
| Mounting Hole Diameter | 0.21 in |
| Body Height | 4.01 in |
| Wireless Network Interface | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Number of Mounting Holes | 4 |
| Body Depth | 2.36 in |
| Operating Torque - Maximum | 2.21 in-lb |
| Mounting Style | Surface |
| Body Width | 1.57 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 2.36 in |
| Overall Height | 4.29 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Package Quantity | 1 |
