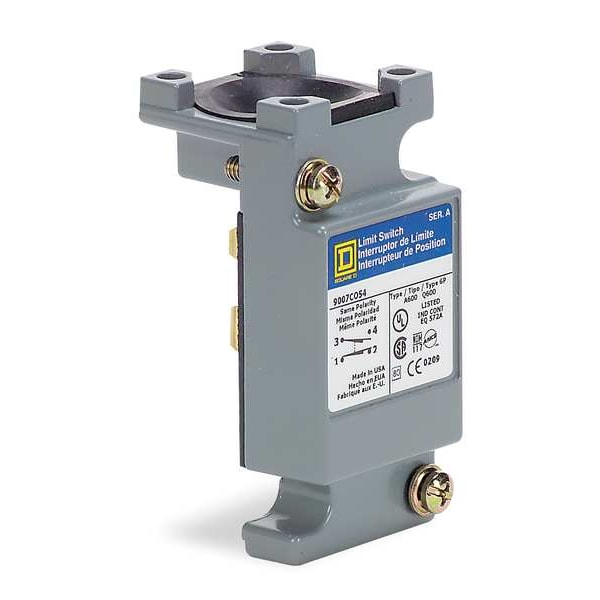

Cuerpo de interruptor de límite 2NC/2NO Nema 1, 2, 4, 6, 6P, 12, 13.
| Item | Limit Switch Body |
|---|---|
| Contact Form | 2NO/2NC |
| Switch Function | 2 SPDT-DB |
| Depth | 1.79 in |
| Height | 3.14-3.14 in |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Width | 1.55 in |
| Electrical Connection | Not Applicable |
| For Use With | Type 9007 C Standard Limit Switches |
| Standards | CE, CSA, UL Listed |
| Operating Temp. | 0 to 185 deg F |
| IP Rating | IP67 |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Material | Zinc |
| Body Material | Zinc |
| DC Contact Rating | 0.11 A @ 250 V, 0.55 A @ 125 V |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Electrical Durability | 1000000 cycles |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 6, 6P |
| Operating Temperature - Maximum | 185 deg F |
| Overall Width | 1.55 in |
| Operating Temperature - Minimum | -20 deg F |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Indicating Light | No Indicating Light Included |
| Compatible with Series | 9007C |
| Overall Depth | 1.79 in |
| Overall Height | 3.14 in |
| Mounting Hole Diameter | 0.2 in |
| Manufacturer Warranty Length | 18 mo |
| Number of Mounting Holes | 2 |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Body Configuration | Plug-In |
| Number Of Poles | 2 |
| Contacts Material | silver contacts |
| Electrical Shock Protection Class | class 0 IEC 61140 |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Short-Circuit Protection | 10 A CC non-time delay |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Associated Connection Component | 9007CT62 |
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 |
| Device Short Name | 9007C |
| Number Of Steps | 2 |
| Body Type | plug-in body |
| [Ie] Rated Operational Current | 1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.11 A 250 V DC, R300 NEMA rating designation || 0.55 A 125 V DC, R300 NEMA rating designation |
| Function Available | neutral position |
| Terminals Description Iso N°1 | NC || NO || NC || NO |
| Associated Head | 9007C |
| Positive Opening | without |
| Series Name | heavy duty |
| Protective Treatment | epoxy powder coat |
| Environmental Characteristic | standard environment |
| Product Or Component Type | limit switch plug-in unit |
| Product Compatibility | 9007C |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA |
| Ambient Air Temperature For Operation | -20-185°F |
| Contact Operation | snap action |
| Ambient Air Temperature For Storage | -20-185°F |
| Contacts Type And Composition | 2 |
| Package Quantity | 1 |
