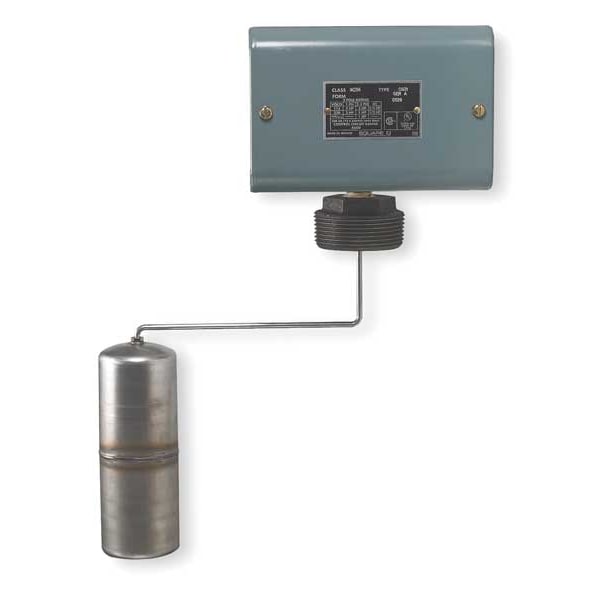

Conmutador de nivel líquido, 2-1/2"MNPT, Cierre de Rosca.
| Item | Alternator Closed Liquid Level Switch |
|---|---|
| Switch Function | Close On Rise |
| Mounting | Side |
| Float Travel | 6-1/2 in |
| NEMA Rating | 1 |
| Tank Connection Size | 2-1/2 in |
| Max. Pressure | 50 PSI |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Overall Length | 17.81 in |
| Body Material | Steel |
| Stem Material | Stainless Steel |
| Conduit Size | 8 1/2 in, 8 3/4 in |
| Float Material | Stainless Steel |
| Float Rod Angle | 90 Degrees |
| Stem Length | 4 in |
| HP @ 1 Phase - 120V | 2 HP |
| Features | High Water Alarm Circuit |
| Float Length | 7 in |
| Width | 6.84 in |
| HP @ 1 Phase - 240V | 3 HP |
| Height | 5.94 in |
| Float Dia. | 2-1/2 in |
| Electrical Connections | Screw Clamp |
| Float Position | Left |
| Includes | High Water Alarm Circuit - Rod and Float |
| Max. Voltage | 475 V |
| HP @ 3 Phase - 240V | 5 HP |
| Max. Current | 600 A |
| Contact Form | DPST-4NC |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| Enclosure Material | painted cold-rolled steel |
| Product Type | Alternator Closed Liquid Level Switch |
| Series | 9038C |
| Overall Width | 6.84 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Float Diameter | 2-1/2 in |
| NEMA Enclosure Rating | 1 |
| Current Rating - Maximum | Not Applicable |
| Proof Pressure | 50 psi |
| Voltage Rating - Maximum | 575 V |
| Manufacturer Warranty Length | 18 mo |
| Stem Thread Size | 2-1/2 in |
| Operating Temperature - Maximum | 220 Degrees F |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Operating Temperature - Minimum | -22 Degrees F |
| Mounting Style | Closed Tank Vertical |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Overall Height | 5.94 in |
| Electrical Connection | Screw Clamp |
| Minimum Media Specific Gravity | 0.85 |
| Cable Entry Number | 8 knock-outs for 1/2" or 3/4"conduit UL 508 |
| Mechanical Durability | 300 cycles |
| Ambient Air Temperature For Operation | -22-220°F |
| Factory Modification | addition of a third, high-water alarm circuit (SPST-NO-DB) |
| Product Destination | for closed tank |
| Materials In Contact With Fluid | yellow brass || nitrile (Buna-N) or equivalent rubber || stainlesss steel 304 || stainless steel 316 || cast iron |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC |
| Device Application | closed tank with bushing |
| Electrical Circuit Type | power circuit with control duty alarm |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher 0-220°F || sea water specific gravity of 0.85 in or higher 0-220°F || hydraulic oil specific gravity of 0.85 in or higher 0-220°F || corrosive fluid specific gravity of 0.85 in or higher 0-220°F |
| Terminal Block Type | 8 terminals |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Device Mounting | screw-in bushing |
| Operating Position | vertical position only |
| Float Movement | 6.5...13 in adjustable |
| Product Or Component Type | mechanical alternator |
| Kit Composition | float || rod || float switch |
| Maximum Operating Rate | 60 cyc/mn |
| Contact Operation | contacts close on liquid rise |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Ambient Air Temperature For Storage | -22-220°F |
| Device Short Name | 9038C |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Contacts Type And Composition | Form YY, 4 NC snap action, DPST-DB |
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
| Product Specific Application | mechanically alternating the operation of two pumps or motors |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Local Signalling | with external pointer |
| Terminals Description Iso N°1 | line-load-load-line |
| Package Quantity | 1 |
