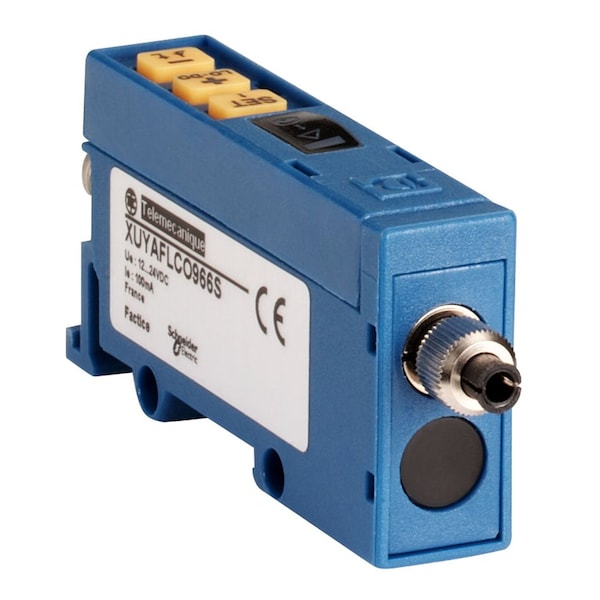

Amplificador para fibra plástica.
| Item | Amplifier For Plastic Fiber |
|---|---|
| Material | Plastic |
| Electrical Connection | 1 male connector M8, 4 pins |
| Current Consumption | < 40 mA |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Product Certifications | CE |
| Product Specific Application | verifying operation of indicator lights on electrical appliances || testing car headlights on production line |
| Sensor Name | XUY |
| [Sn] Nominal Sensing Distance | 0-0 mm depending on plastic fibres diameter 2.2 mm used |
| Enclosure Material | polycarbonate |
| Ambient Air Temperature For Operation | 0-60°C |
| Wiring Technique | 4-wire |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
| Status Led | output signal 1 LED green) || limit of detection 1 LED red) || time delay active 1 LED red) |
| Switching Frequency | < 5 Hz |
| Maximum Voltage Drop | < closed state |
| Sensor Design | fiber design |
| Time Delay Range | 0...5 s adjustment increments |
| Series Name | Application assembly |
| Type Of Output Signal | discrete |
| Setting-Up | with sensitivity adjustment |
| Maximum Delay Recovery | 100 msec |
| Supply Voltage Limits | 10-30 V DC |
| Detection System | diffuse |
| Maximum Delay Response | 100 msec |
| Output Type | solid state |
| Ambient Air Temperature For Storage | -20-80°C |
| Supply Circuit Type | DC |
| Electronic Sensor Type | photo-electric sensor |
| Voltage State 0 Guaranteed | < 1.4 V |
| Voltage State 1 Guaranteed | > 3 V |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Package Quantity | 1 |
