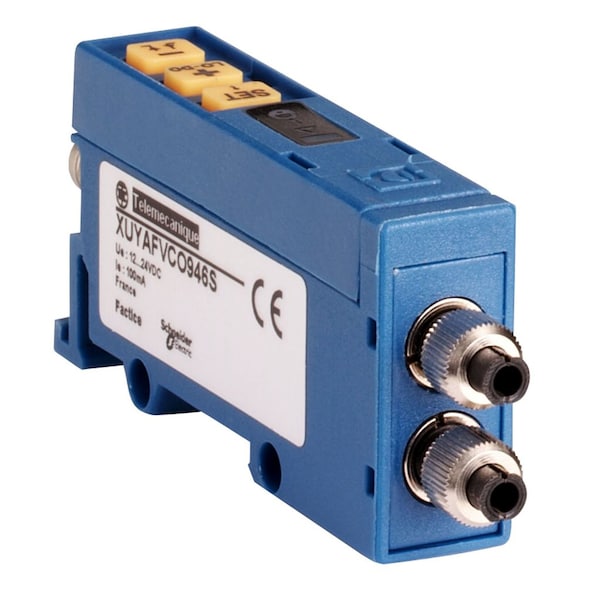

Amplificador para fibra de plástico
| Item | Amplifier For Plastic Fiber |
|---|---|
| Material | Plastic |
| Electrical Connection | cable |
| Current Consumption | <= 40 mA no-load |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Maximum Voltage Drop | < closed state |
| Ambient Air Temperature For Storage | -20-80°C |
| Maximum Delay Recovery | 5 ms plastic fibre optics 2.2 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Voltage State 0 Guaranteed | < 1.4 V |
| Discrete Output Type | PNP, NPN |
| Electronic Sensor Type | photo-electric sensor |
| Setting-Up | sensitivity adjustment using +/- teach mode |
| Sensor Design | fiber design |
| Supply Voltage Limits | 10-30 V DC |
| Switching Frequency | < 1 kHz |
| Type Of Output Signal | discrete |
| Immunity To Ambient Light | 10000 lux natural light || 20000 lux incandescent bulb |
| Enclosure Material | polycarbonate |
| Voltage State 1 Guaranteed | > 3 V |
| Output Type | solid state |
| Product Certifications | CE || cULus |
| Sensor Name | XUY |
| Emission | red LED |
| Display Type | bar graph |
| Ambient Air Temperature For Operation | 0-60°C |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Series Name | Application assembly |
| Specific Application Of Photoelectric Detector | monitoring position or presence of parts on an assembly or packing machine || detection of reference and colour marks in packaging || detection of objects on small conveyor || use of fiber optics in vibratory environments (robot arms) |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Maximum Delay Response | 5 ms plastic fibre optics 2.2 mm |
| Pulse Frequency | 8 kHz |
| Supply Circuit Type | DC |
| Package Quantity | 1 |
