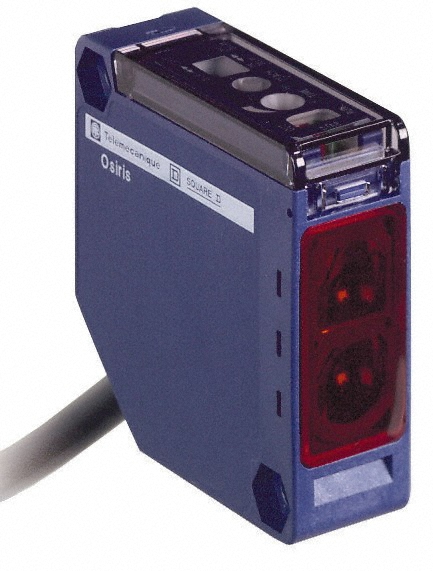

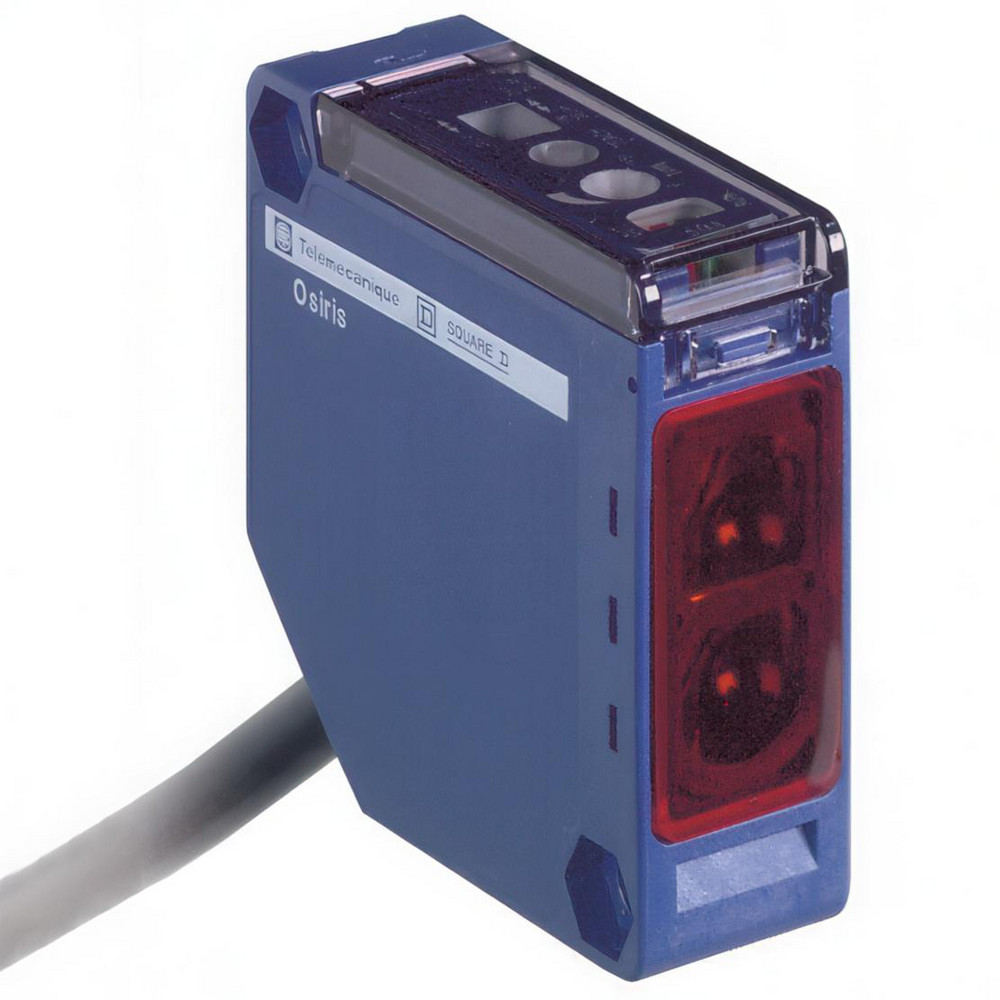

12 to 24 VDC, 250 Hz, PBT, 50mm Long x 18mm Wide x 50mm High
| Sensor Type | Retro-reflective |
|---|---|
| Output Circuit Type | NPN |
| Maximum Nominal Sensing Distance | 15.00 |
| Connector Type | Cable |
| Frequency | 250 Hz |
| Housing Material | PBT |
| Cable Length | 6.56 |
| Resistance Features | Shock-Resistant; Vibration-Resistant |
| Overall Length | 50 mm |
| Overall Width | 18 mm |
| Overall Height | 50 mm |
| Body Shape | Rectangular |
| Minimum Operating Temperature | -13.0 F |
| For Use With | OsiSense XU |
| Standards | CSA; CE; UL |
| UNSPSC Code | 39121528 |
| MSC Number | MSC# 56781982 |
