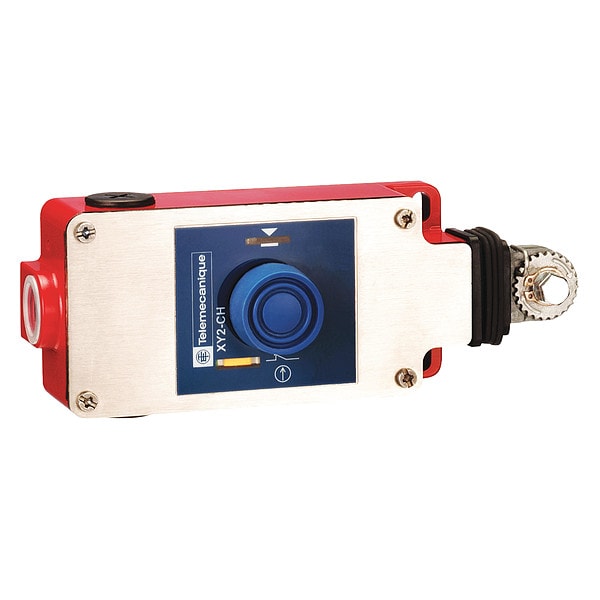

Tirar del cable Sw 240Vac 10A Xy2 (Métrico).
| Item | Cable Pull Switch |
|---|---|
| Reset | by push-button |
| Standards | EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || work equipment directive 2009/104/EC || EN/IEC 60204-1 |
| Body Material | zamak |
| Series | XY2CE |
| Safety Level | can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Mechanical Durability | 800,000 cycle |
| Local Signalling | without pilot light |
| Trigger Cable Maximum Length | 30 m |
| Cover Material | Stainless Steel |
| Product Or Component Type | latching emergency stop rope pull switch |
| Tightening Torque | 0.8-1.2 N.m |
| Distance Between Cable Supports | 5-5 m |
| Marking | CE |
| Contacts Type And Composition | 2 NC |
| Terminals Description Iso N°1 | NC || NC |
| Compatibility Code | XY2CH |
| Device Short Name | XY2CH |
| Maximum Resistance Across Terminals | 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Product Certifications | UL category NISD emergency stop devices || CCC |
| Overvoltage Category | class I EN/IEC 61140 || class I NF C 20-030 |
| [Ui] Rated Insulation Voltage | 500 V 3)EN/IEC 60947-1 || 300 VUL 508 |
| Protective Treatment | TC |
| Connections - Terminals | screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm² |
| Housing Colour | red RAL 3000 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60269 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Trigger Cable Anchor Point | RH or LH side |
| Cable Entry Number | 3 tapped entry Pg 13.5 cable gland |
| Contact Operation | slow-break |
| Shock Resistance | 50 gn 11 ms EN/IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Positive Opening | with EN/IEC 60947-5-1 |
| Number Of Cables | 1 |
| Ambient Air Temperature For Operation | -25-70°C |
| Vibration Resistance | 10 gn 10-150 Hz)EN/IEC 60068-2-6 |
| Package Quantity | 1 |
