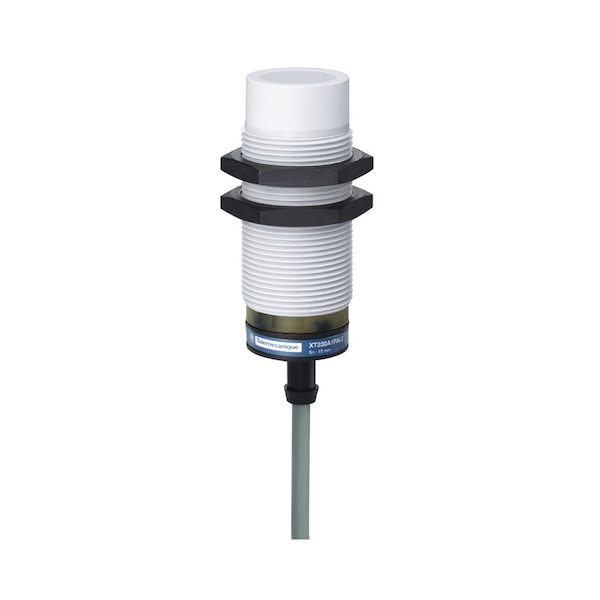

Sensor capacitivo de 30 mm 24-240 VCA No.
| Item | Capacitive Sensor 30 Mm 24 240 Ac No |
|---|---|
| Proximity Sensor Style | Cylindrical M30 |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 24 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2-Wire AC/DC |
| Output Mode | 1 NO |
| Length | 74.5 mm |
| Max. Detecting Distance | 15 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Plastic |
| Proximity Sensor Operating Frequency | Less than Or Equal to 25 Hz |
| Standards | EN/IEC 60947-5-2; cULus; CE Marked |
| Description/Special Features | Frontal Detection Face; Sensitivity By Potentiometer; Output State Indication 1 LED Yellow |
| Operating Temp. Range | -10 to 60 deg C |
| IP Rating | IP67 |
| Max. Current Load | 4 mA, 300 mA |
| Application | detection of insulated or conductive materials |
| Maximum Delay First Up | 200 msec |
| Differential Travel | < 1...20 % Sr |
| Maximum Voltage Drop | <10 V closed) |
| Shock Resistance | 30 gn 11 ms IEC 60068-2-27 |
| Maximum Delay Recovery | 30 msec |
| Series | XT2 |
| Body Type | fixed |
| Maximum Delay Response | 30 msec |
| Vibration Resistance | 10 gn 1 mm 10-55 Hz)IEC 60068-2-6 |
| Supply Voltage Limits | 20-265 V AC |
| Package Quantity | 1 |
