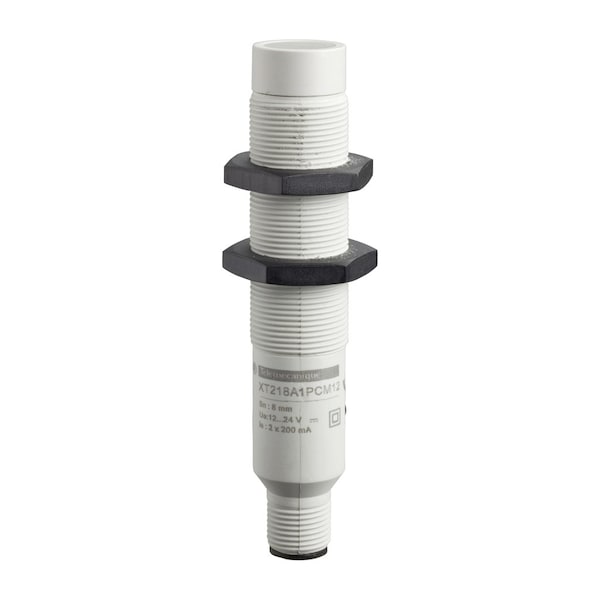

Sensor capacitivo M18 12 24V CC PNP normalmente cerrado.
| Item | Capacitive Sensor M18 12 24V Dc Pnp No N |
|---|---|
| Proximity Sensor Style | Cylindrical M18 |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 4-Wire DC PNP |
| Output Mode | 1 NC + 1 NO |
| Length | 78 mm |
| Max. Detecting Distance | 8 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Basic Proximity Sensor Case Material | Plastic |
| Proximity Sensor Operating Frequency | Less than Or Equal to 200 Hz |
| Operating Temp. Range | -10 to 60 deg C |
| Description/Special Features | Frontal Detection Face; Short-Circuit Protection; Sensitivity By Potentiometer; Output State Indication 1 LED Yellow |
| IP Rating | IP67 |
| Max. Current Load | 25 mA, 400 mA |
| Standards | EN/IEC 60947-5-2; cULus; CE Marked |
| Application | detection of insulated or conductive materials |
| Shock Resistance | 30 gn 11 ms IEC 60068-2-27 |
| Differential Travel | < 1...20 % Sr |
| Body Type | fixed |
| Maximum Delay Response | 15 msec |
| Vibration Resistance | 10 gn 1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Voltage Drop | <2.5 V closed) |
| Maximum Delay First Up | 100 msec |
| Maximum Delay Recovery | 15 msec |
| Series | XT2 |
| Supply Voltage Limits | 10-30 V DC |
| Package Quantity | 1 |
