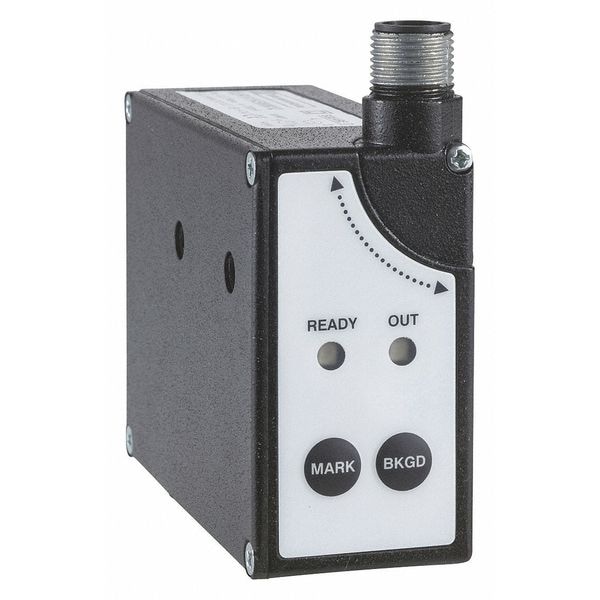

Sensor de marca de color con aprendizaje.
| Item | Color Mark Sensor With Teaching |
|---|---|
| Height | 82 mm |
| Width | 31 mm |
| Material | Metal |
| Depth | 58 mm |
| Electrical Connection | 1 male connector M12 adjustable 3 positions, 4 pins |
| Current Consumption | <= 80 mA no-load |
| Product Specific Application | colour mark |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Voltage Drop | <1 V closed state, <2 V closed state, NPN ||, PNP |
| Add On Output | with analogue output |
| Ambient Air Temperature For Storage | -20-70°C |
| Maximum Delay Recovery | 0.05 msec |
| Series Name | Application packaging |
| Discrete Output Type | PNP, NPN |
| Lens Material | Glass |
| Enclosure Material | zinc alloy |
| Output Type | solid state |
| Wiring Technique | 3-wire |
| Detection System | diffuse |
| Analogue Output Range | 0...5.5 V, DC |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Delay First Up | 100 msec |
| Supply Circuit Type | DC |
| Time Delay Range | 20 ms off-delay activation/deactivation by internal switch |
| Maximum Inclination Of Reader | 20° |
| Ambient Air Temperature For Operation | -10-55°C |
| Status Led | output state 1 LED red) |
| Product Certifications | CE |
| Switching Frequency | <= 10 kHz |
| Supply Voltage Limits | DC |
| Minimum Width Of Mark Detected | 0.5 mm |
| Setting-Up | sensitivity adjustment |
| Maximum Passing Speed Of Object | 10 m/s 1 mm |
| Output Function Governance | light or dark programmable |
| Sensor Name | XUR |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Emission | red or green |
| [Sn] Nominal Sensing Distance | 18-18 mm 2 x 7 mm need lens XURZ01 || 7-7 mm 1 x 4 mm need lens XURZ02 || 9-9 mm 1.5 x 5 mm without lens |
| Sensor Design | compact |
| Switching Capacity In Ma | <= 200 mA overload and short-circuit protection) |
| Vibration Resistance | 7 gn +/- 0.6 mm 10-55 Hz) IEC 60068-2-6 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Maximum Delay Response | 0.05 msec |
| Type Of Output Signal | discrete || analogue |
| Package Quantity | 1 |
