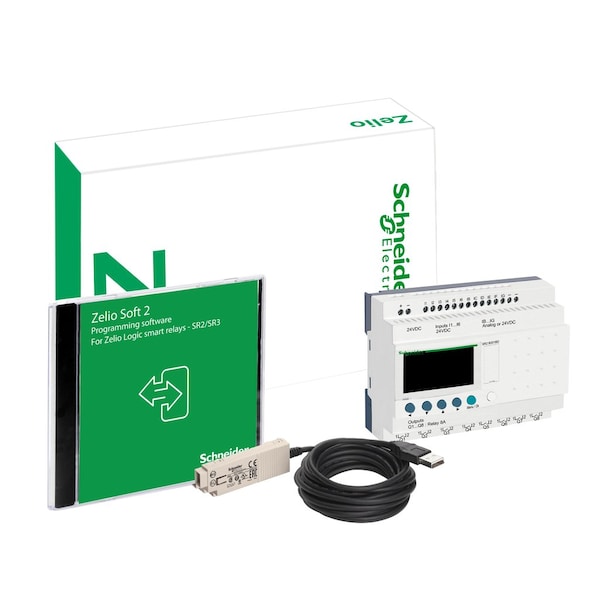

Relé inteligente compacto Zelio Logic - "disco, 24V de voltaje en bobina, salida de relé NO.
| Item | Compact smart relay Zelio Logic - "disco |
|---|---|
| Coil Volts | 24V |
| Contact Form - Relay | NO Relay Output |
| Power Consumption - Relay | 6 W |
| Features | Local Display; Reverse Polarity Protection |
| Standards | IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 60068-2-27 Ea, IEC 61000-4-11, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-4 level 3 |
| Ip Degree of Protection | IP20 IEC 60529 terminal block, IP40 IEC 60529 front panel |
| Cycle Time | 6-90 ms |
| Operating Altitude | 6561.68 ft (2000 m) |
| Lsb Value | 39 mV analogue input circuit |
| Product or Component Type | compact discovery packs |
| Discrete Input Number | 12 IEC 61131-2 Type 1 |
| Current State 1 Guaranteed | >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit) |
| Number or Control Scheme Lines | 120-120 ladder, 0-200 FBD |
| Discrete Input Current | 4 mA |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Analogue Input Resolution | 8 bits |
| Immunity To Microbreaks | 1 msec |
| Range of Product | Zelio Logic |
| Analogue Input Range | 0...10 V, 0...24 V |
| Pollution Degree | 2 IEC 61131-2 |
| Analogue Input Number | 2 |
| Discrete Input Voltage | 24 V DC |
| Local Display | with |
| Environmental Characteristic | EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2 |
| Input/Output Number | 20 |
| Backup Time | 10 years 25°C |
| Analogue Input Type | common mode |
| Power Dissipation In W | 6 W without extension |
| Clock | without |
| Ambient Air Temperature For Storage | -40-70°C |
| Discrete Input Type | resistive |
| Electrical Durability | AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 |
| Current State 0 Guaranteed | <= 0.5 mA IB...IG used as discrete input circuit) |
| Voltage State 1 Guaranteed | >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit |
| Temperature Probe Type | NTC 10k 25°C, NTC 1000k 25°C, KTY81 210/220/221/222/250, Pt 500 |
| Reverse Polarity Protection | with |
| Supply Voltage Limits | 19.2 to 30 V |
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Input Compatibility | 3-wire proximity sensors PNP discrete input |
| Number of Outputs | 8 relay |
| Counting Frequency | 1 kHz discrete input |
| Contacts Type And Composition | NO relay output |
| Repeat Accuracy | +/- 2 % 55°C analogue input circuit |
| Input Impedance | 12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit |
| [Us] Rated Supply Voltage | 24 V |
| Maximum Supply Current | 100 mA without extension) |
| Maximum Altitude Transport | 3048 m |
| Kit Composition | SR2B201BD, cable PC SR2USB01 for connection to PC |
| Output Thermal Current | 8 A for all 8 outputs relay output |
| Clock Drift | 12 min/year 0-55°C, 6 s/month 25-25°C |
| Mechanical Durability | 10000000 cycles relay output |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Conversion Time | smart relay cycle time analogue input circuit |
| Connections - Terminals | screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end |
| Tightening Torque | 0.5 N.m |
| Response Time | 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Pvc Free | Yes |
| Maximum Permissible Voltage | 30 V analogue input circuit |
| Conversion Error | +/- 5 % 25°C analogue input circuit, +/- 6.2 % 55°C analogue input circuit |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Output Voltage Limits | 24...250 V AC relay output), 5...30 V DC relay output) |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Voltage State 0 Guaranteed | <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit |
| Ambient Air Temperature For Operation | -20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2 |
| Operating Distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
| Overvoltage Category | III IEC 60664-1 |
| Current Rating | 4 mA |
| Operating Temp. Range | -20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55°C IEC 60068-2-1 and IEC 60068-2-2 |
| Package Quantity | 1 |
