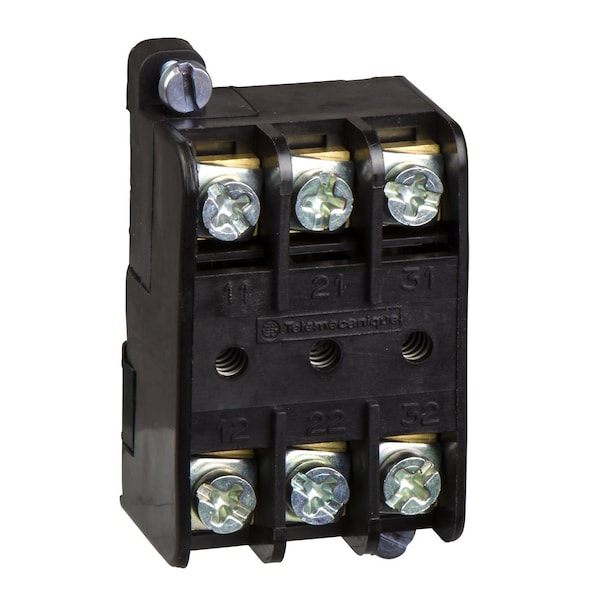

Bloque de contacto, Harmony XAC, estación colgante 240 V AC, 3 A, xe
| Item | PENDANT STATION CONTACT - 240V AC - 3A - |
|---|---|
| Contact Form | 3 NC; single |
| Type of Operator | spring return |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508 |
| Contact Rating | slow-break |
| Voltage | 400 V |
| Application | emergency stop push-button |
| Terminal Connection | screw clamp terminal |
| Contact Block Application | emergency stop push-button |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
| Short-Circuit Protection | 6 A (fuse protection cartridge aM) |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Product or Component Type | contact block |
| [Ithe] Conventional Enclosed Thermal Current | 10A |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Contacts Type And Composition | 3 NC |
| Component Name | XENT |
| Range of Product | Harmony XAC |
| Terminals Description Iso N°1 | NC |
| Rated Operational Power In W | 3000 W AC-23B 400 V |
| Electrical Circuit Type | control circuit, power circuit |
| Contact Operation | Slow-break |
| Shock Resistance | 70 gn IEC 60068-2-27 |
| Mechanical Durability | 3,000,000 cycle |
| Product Compatibility | XACB |
| Contact Block Type | Single |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Overvoltage Category | class II IEC 61140 |
| Package Quantity | 1 |
