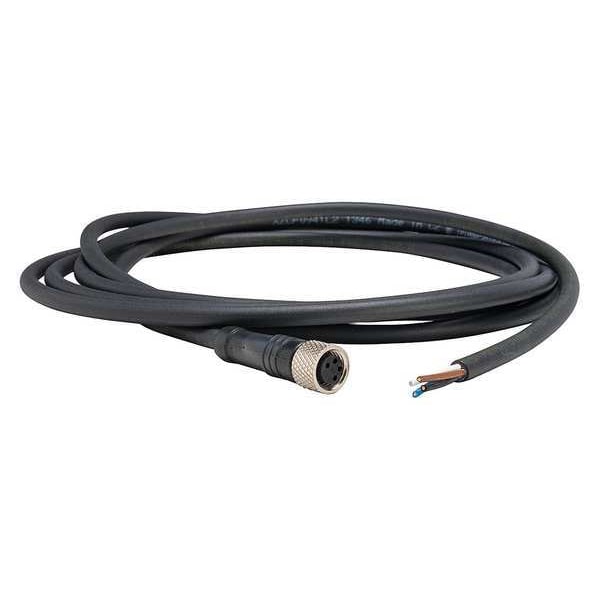

Cable de conexión, 6.56 pies, negro, 250VCA/300VCD.
| Item | Cable |
|---|---|
| Cable Length | 5 m |
| Number of Pins | 4 |
| Jacket Color | Black |
| End 1 Number of Pins | 4 |
| Max. Voltage | 60VAC/75VDC |
| End 1 Thread | M8 |
| Wire Size | 18 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M8 |
| End 2 Connection Type | Bare Wire |
| End 1 Keyway | Single |
| End 1 Gender and Plug End | Female Straight |
| IP Rating | IP65, IP67, IP69K |
| End 2 Gender and Plug End | Bare Wire |
| Features | Good Resistance to Severe Mechanical Atress, Friction, Abrasion, Torsion, Hot and Cold Oils, Greases and Lubricants, Halogen Free; Mercury Free |
| Number of Conductors | 4 |
| Standards | CSA Certified, IEC, UL Listed |
| Max. Amps | 4 |
| Jacket Material | PUR |
| Temp. Range | -40 to 80 deg C |
| End 1 Number of Keyways | 1 |
| Number of Wires | 4 |
| Cable Jacket Material | PUR |
| Minimum Operating Temperature | -13 deg F |
| Cordset Type | Single-Ended |
| End 1 Mounting Orientation | Straight |
| Maximum Operating Temperature | 176 deg F |
| End 1 Gender | Female |
| Cable Jacket Color | Black |
| End 2 Gender | Not Applicable |
| Ambient Air Temperature For Operation | -40-80°C static || -5-80°C flexing |
| Line Rated Current | 4 A |
| Cable Connector Fixing | screw-on |
| Contact Resistance | 5000µOhm |
| Product Certifications | cULus |
| Cable Outer Diameter | 5.2 mm |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Electrical Connection | straight female connector M8, 4 pins |
| Collar Material | metal |
| Ambient Air Temperature For Storage | -40-80°C |
| Accessory / Separate Part Category | cabling accessory |
| Cable Composition | 4 mm² x 0.34 mm² |
| Accessory / Separate Part Type | pre-wired connectors |
| Ip Degree Of Protection | IP65 || IP67 || IP69K |
| Series Name | general purpose |
| Minimum Insulating Resistance | 1 GΩ |
| Status Led | without |
| Wire Insulation Material | PUR |
| Package Quantity | 1 |
