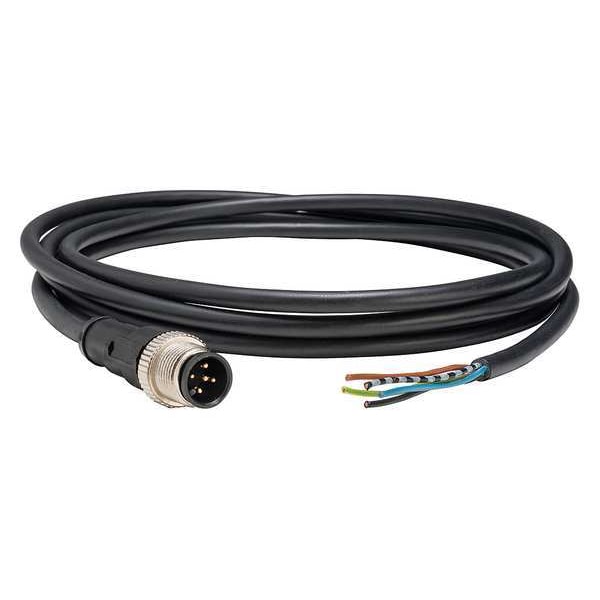

Cable de conexión, 6.56 pies., Negro, 250VAC/300VDC.
| Item | Cable |
|---|---|
| Cable Length | 2 m |
| Number of Pins | 5 |
| Jacket Color | Black |
| End 1 Number of Pins | 5 |
| Max. Voltage | 60VAC/75VDC |
| End 1 Thread | M12 |
| Wire Size | 18 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Standards | CSA Certified, IEC, UL Listed |
| Number of Conductors | 5 |
| Jacket Material | PUR |
| End 2 Gender and Plug End | Bare Wire |
| Temp. Range | -40 to 80 deg C |
| IP Rating | IP65, IP67, IP69K |
| Features | Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free |
| Max. Amps | 4 |
| End 1 Gender and Plug End | Male Straight |
| End 1 Keyway | Single |
| End 1 Number of Keyways | 1 |
| Number of Wires | 5 |
| End 1 Gender | Male |
| Cordset Type | Single-Ended |
| Cable Jacket Material | PUR |
| Cable Jacket Color | Black |
| Minimum Operating Temperature | -13 deg F |
| End 1 Mounting Orientation | Straight |
| Maximum Operating Temperature | 176 deg F |
| End 2 Gender | Not Applicable |
| Accessory / Separate Part Type | pre-wired connectors |
| Product Certifications | cULus |
| Accessory / Separate Part Category | cabling accessory |
| Collar Material | metal |
| Wire Insulation Material | PUR |
| Cable Connector Fixing | screw-on |
| Cable Outer Diameter | 5.9 mm |
| Ambient Air Temperature For Operation | -40-80°C static || -5-80°C flexing |
| Line Rated Current | 4 A |
| Cable Composition | 4 x 0.34 mm² || 1 x 0.5 mm² |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Minimum Insulating Resistance | 1 GΩ |
| Status Led | without |
| Ambient Air Temperature For Storage | -40-80°C |
| Electrical Connection | straight male connector M12, 5 pins (included earth pin) |
| Ip Degree Of Protection | IP69K || IP65 || IP67 |
| Series Name | general purpose |
| Contact Resistance | 5000µOhm |
| Package Quantity | 1 |
