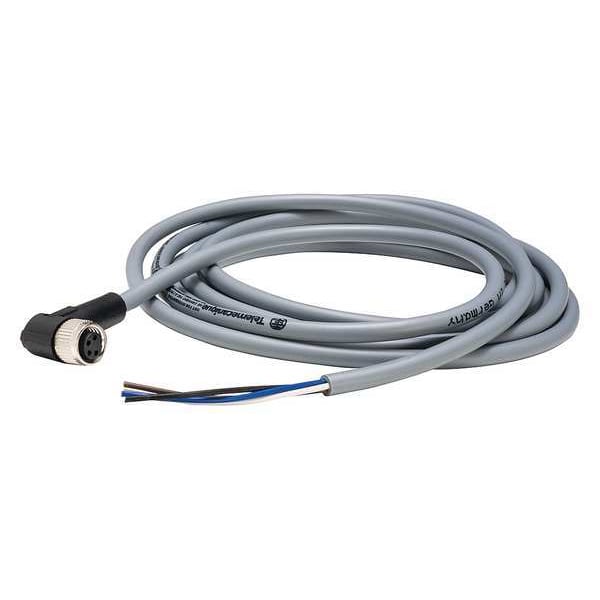

Cable con conector, 6.56 pies, gris, 250VCA/300VCD.
| Item | Cable |
|---|---|
| Cable Length | 6.56 ft |
| Number of Pins | 4 |
| Jacket Color | Gray |
| End 1 Number of Pins | 4 |
| Max. Voltage | 60VAC/75VDC |
| End 1 Thread | M8 |
| Wire Size | 18 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M8 |
| End 2 Connection Type | Bare Wire |
| Temp. Range | -25 to 80 deg C |
| Max. Amps | 3 |
| Standards | CSA Certified, IEC, UL Listed |
| End 1 Gender and Plug End | Female Right Angle |
| End 1 Keyway | Single |
| End 2 Gender and Plug End | Bare Wire |
| Features | Good Resistance to Moderate Mechanical Stress; Chemical Products and Humid Environments; Easy Cable Stripping; Mercury Free |
| Number of Conductors | 4 |
| IP Rating | IP67, IP65 |
| Jacket Material | PVC |
| End 1 Number of Keyways | 1 |
| End 1 Gender | Female |
| Minimum Operating Temperature | -13 deg F |
| End 1 Mounting Orientation | Angle |
| Maximum Operating Temperature | 176 deg F |
| Cordset Type | Single-Ended |
| Number of Wires | 4 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| End 2 Gender | Not Applicable |
| Cable Outer Diameter | 4.6 mm |
| Ambient Air Temperature For Storage | -25-80°C |
| Accessory / Separate Part Type | pre-wired connectors |
| Line Rated Current | 3 A |
| Minimum Insulating Resistance | 1 GΩ |
| Product Certifications | cULus |
| Collar Material | metal |
| Cable Composition | 4 mm² x 0.25 mm² |
| Series Name | general purpose |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Wire Insulation Material | PVC |
| Electrical Connection | elbowed female connector M8, 4 pins |
| Ip Degree Of Protection | IP67 || IP65 |
| Cable Connector Fixing | screw-on |
| Status Led | without |
| Ambient Air Temperature For Operation | -25-80°C static |
| Contact Resistance | 5000µOhm |
| Accessory / Separate Part Category | cabling accessory |
| Package Quantity | 1 |
