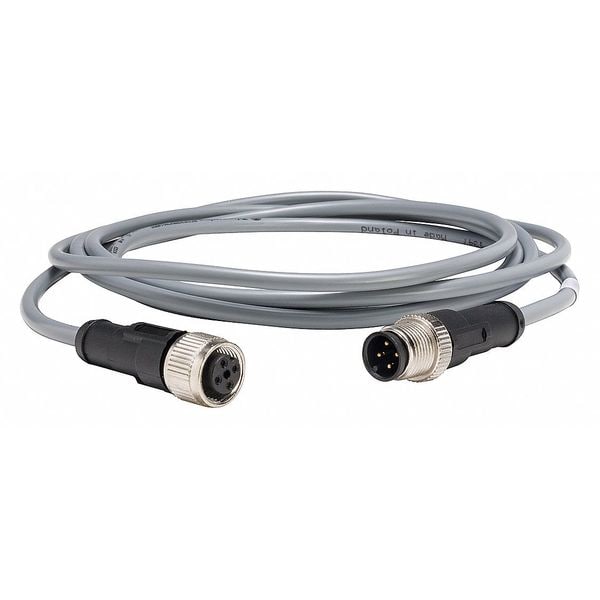

Cable de conexión, 6.56 pies, gris, 250VCA/300VCD
| Item | Jumper Cable |
|---|---|
| Cable Length | 2 m |
| Number of Pins | 4 |
| Jacket Color | Gray |
| End 1 Number of Pins | 4 |
| Max. Voltage | 250VAC/300VDC |
| End 2 Number of Pins | 4 |
| End 1 Thread | M12 |
| End 2 Thread | M12 |
| Wire Size | 22 AWG |
| End 1 Connection Type | M12 |
| End 2 Connection Type | M12 |
| Features | Good Resistance to Moderate Mechanical Stress; Chemical Products and Humid Environments; Easy Cable Stripping; Mercury Free |
| Temp. Range | -25 to 80 deg C |
| Standards | CSA Certified, IEC, UL Listed |
| End 2 Gender and Plug End | Female Straight |
| Jacket Material | PVC |
| IP Rating | IP67, IP65 |
| End 2 Keyway | Single |
| Max. Amps | 3 |
| End 1 Keyway | Single |
| End 1 Gender and Plug End | Male Straight |
| Number of Conductors | 4 |
| End 2 Number of Keyways | 1 |
| End 1 Number of Keyways | 1 |
| End 1 Gender | Male |
| Number of Wires | 4 |
| End 2 Gender | Female |
| Maximum Operating Temperature | 185 deg F |
| End 1 Mounting Orientation | Straight |
| Minimum Operating Temperature | -13 deg F |
| Cordset Type | Double-Ended |
| End 2 Mounting Orientation | Straight |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| Wire Insulation Material | PVC |
| Collar Material | metal |
| Accessory / Separate Part Category | cabling accessory |
| Cable Composition | 4 mm² x 0.25 mm² |
| Insulation Resistance | >= 1000 MOhm |
| Cable Outer Diameter | 4.6 mm |
| Product Certifications | cULus |
| Ambient Air Temperature For Storage | -25-80°C |
| Maximum Resistance Across Terminals | 5000 mOhm |
| Jumper Cable End 2 | M12 female 4 pins straight screw-on |
| Ip Degree Of Protection | IP65 || IP67 |
| Accessory / Separate Part Type | jumper cable |
| Jumper Cable End 1 | M12 male 4 pins straight screw-on |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Line Rated Current | 3 A |
| Ambient Air Temperature For Operation | -25-80°C static |
| Package Quantity | 1 |
