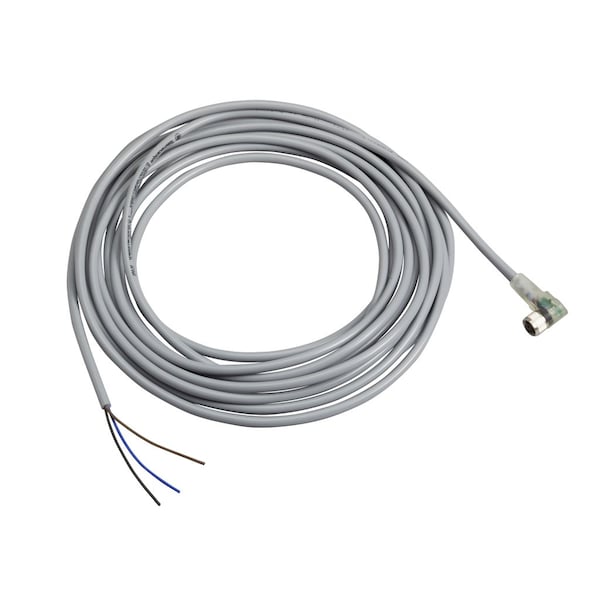

Cable de conexión de PVC hembra M8 de 3 pines PNP con LEDs de 90 grados y 5 metros de longitud.
| Item | Pre Wired Connector |
|---|---|
| Number of Pins | 3 |
| Cable Length | 5 m |
| Max. Voltage | 30VAC/36VDC |
| Color | Blue, Brown, Black |
| Features | Mercury Free |
| Temp. Range | -13 to 176 deg F |
| IP Rating | IP67, IP65 |
| Max. Amps | 3 |
| Accessory / Separate Part Category | cabling accessory |
| Line Rated Current | 3 A |
| Series Name | general purpose |
| Status Led | 2 PNP LEDs |
| Cable Composition | 3 x 0.25 mm² |
| Cable Outer Diameter | 4.6 mm |
| [Ue] Rated Operational Voltage | 30 V AC || 36 V DC |
| Minimum Insulating Resistance | 1 GΩ |
| Collar Material | metal |
| Ambient Air Temperature For Storage | -25-80°C |
| Wire Insulation Material | PVC |
| Product Certifications | cULus |
| Contact Resistance | 5000µOhm |
| Cable Connector Fixing | screw-on |
| Ip Degree Of Protection | IP67 || IP65 |
| Electrical Connection | elbowed female connector M8, 3 pins |
| Ambient Air Temperature For Operation | -25-80°C static |
| Accessory / Separate Part Type | pre-wired connectors |
| Package Quantity | 1 |
