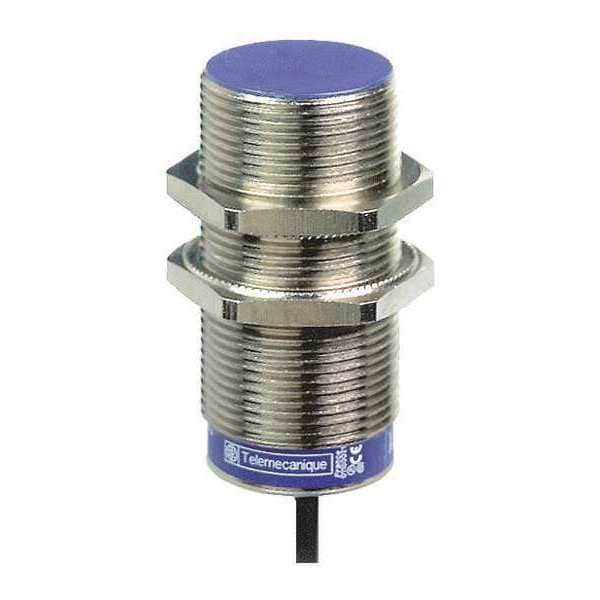

Sensor de proximidad cilíndrico, 30mm, 2 cables.
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 8 to 15 mm |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Proximity Sensor Diameter | 30 mm |
| Length | 62 mm |
| Max. Detecting Distance | 15 mm |
| Proximity Sensor Electrical Connection | 10m Cable |
| Basic Proximity Sensor Case Material | Metal |
| Shielded / Unshielded | Shielded |
| Case Material | Nickel Plated Brass |
| Proximity Sensor Operating Frequency | 500 Hz |
| IP Rating | 65, 68 |
| Standards | CE Compliance, CSA Certified, UL Listed |
| Operating Temp. Range | -13 to 158 deg F |
| Max. Current Load | 200 mA |
| Description/Special Features | Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication |
| Length (Straight Wireway) | 62 mm |
| Storage Temp. Range | -40-85 °C |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Switching Capacity | 5...200 mA DC || 5...300 mA AC |
| Application | General Purpose |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Maximum Voltage Drop | <5.5 V closed) |
| Maximum Delay Response | 0.5 msec |
| Differential Travel | Sr, 1...15% |
| Body Type | fixed |
| Maximum Delay First Up | 25 msec |
| Maximum Delay Recovery | 2 msec |
| Series | XS6 |
| Supply Voltage Limits | 20-264 V AC, DC |
| Package Quantity | 1 |
