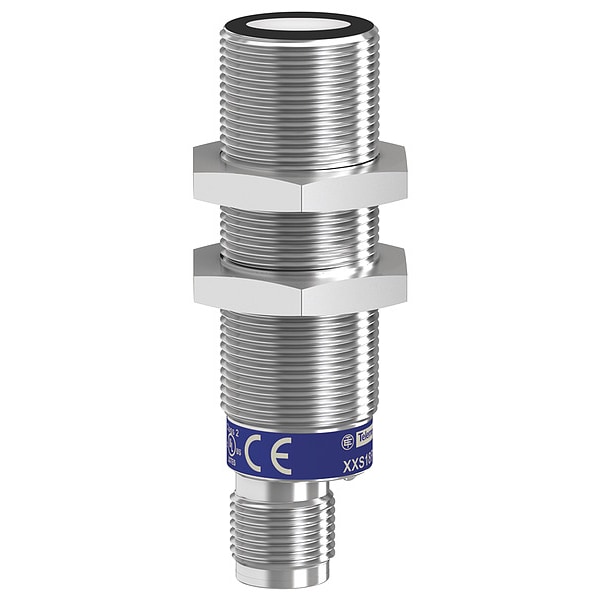

Sensor ultrasónico cilíndrico, 18mm de diámetro.
| Response Time | 45 msec |
|---|---|
| Depth | 2.52 in |
| Output | PNP |
| Description/Special Features | With synchronization mode, Software configurable |
| Power Required | 10 to 30V DC |
| Electrical Connection | 5 Pin M12 Male Connector |
| Operating Temp. Range | -13 to 158 deg F |
| Item | Cylindrical Ultrasonic Sensor |
| Case Material | Nickel plated brass |
| Width | 0.71 in |
| IP Rating | 65, 67 |
| Diameter | 18 mm |
| Operating Frequency | 200 kHz |
| Material | Metal |
| Circuit Type | Discrete |
| Length | 0.71 in |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-2, UL 508 |
| Length (Straight Wireway) | 0.71 in |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Front Material | epoxy || rubber || resin |
| Height | 18 mm |
| [Sd] Sensing Range | 0.105-1 m |
| Status Led | output state 1 LED yellow) || echo state 1 LED green) |
| Threaded Length | 45 mm |
| Maximum Delay Recovery | 45 msec |
| Wiring Technique | 5-wire |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Product Certifications | cULus || RCM || E2 || EAC || Ecolab |
| Repeat Accuracy | 0.001 |
| Type Of Output Signal | discrete |
| Setting-Up | teach mode || configurator software |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Sensor Type | ultrasonic sensor |
| Maximum Differential Travel | 4 mm |
| Maximum Voltage Drop | 2 V |
| Discrete Output Type | PNP |
| Sensor Name | XXS |
| Minimum Size Of Detected Object | cylinder diameter 1 mm 600 mm |
| [Sa] Assured Operating Distance | 0.105-1 m teach mode |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Detection System | diffuse |
| Enclosure Material | Nickel Plated Brass |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 || IP67 |
| Maximum Delay Response | 45 msec |
| Maximum Delay First Up | 120 msec |
| Ambient Air Temperature For Storage | -40-80°C |
| Current Consumption | 30 mA |
| Transmission Frequency | 200 kHz |
| Series Name | general purpose |
| Marking | CE |
| Supply Voltage Limits | 10-30 V DC |
| Function Available | with synchronisation mode || software configurable |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button || 1-1 m software with kit |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Switching Frequency | 11 Hz |
| Sensor Design | cylindrical M18 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Ambient Air Temperature For Operation | -25-70°C |
| Blind Zone | 105-105 mm |
| Deviation Angle From 90° Of Object To Be Detected | -10-10° |
| Package Quantity | 1 |
