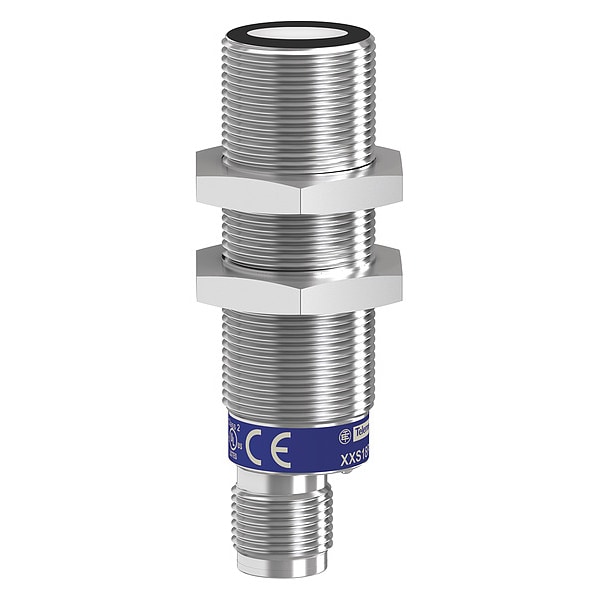

Sensor ultrasónico cilíndrico, carcasa de acero inoxidable.
| Item | Cylindrical Ultrasonic Sensor |
|---|---|
| Circuit Type | Analogue |
| Length | 0.71 in |
| Width | 0.71 in |
| Depth | 2.52 in |
| Power Required | 14 to 30V DC |
| Electrical Connection | 5 Pin M12 Male Connector |
| Diameter | 18 mm |
| IP Rating | 65, 67 |
| Case Material | Stainless steel 316L |
| Output | 0 to 10V |
| Operating Frequency | 200 kHz |
| Operating Temp. Range | -13 to 158 deg F |
| Response Time | 100 msec |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-2, UL 508 |
| Description/Special Features | With synchronization mode, Software configurable |
| Material | Metal |
| Length (Straight Wireway) | 0.71 in |
| Detection System | diffuse |
| [Sa] Assured Operating Distance | 0.105-1 m teach mode |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 100 msec |
| Threaded Length | 45 mm |
| Function Available | software configurable || with synchronisation mode |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
| Front Material | epoxy || rubber || resin |
| Repeat Accuracy | 0.001 |
| Series Name | general purpose |
| Maximum Switching Capacity | >= 1 kOhm overload and short-circuit protection |
| Setting-Up | teach mode || configurator software |
| Status Led | output state 1 LED yellow) || echo state 1 LED green) |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Height | 18 mm |
| Maximum Delay First Up | 180 msec |
| Minimum Size Of Detected Object | cylinder diameter 1 mm 600 mm |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Current Consumption | 30 mA |
| Supply Voltage Limits | 14-30 V DC |
| Transmission Frequency | 200 kHz |
| Type Of Output Signal | analogue |
| Wiring Technique | 5-wire |
| Deviation Angle From 90° Of Object To Be Detected | -10-10° |
| Sensor Name | XXS |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 || IP67 |
| Product Certifications | cULus || E2 || EAC || RCM || Ecolab |
| Enclosure Material | stainless steel |
| Marking | CE |
| Ambient Air Temperature For Storage | -40-80°C |
| Analogue Output Function | 0...10 V |
| [Sd] Sensing Range | 0.105-1 m |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button || 1-1 m software with kit |
| Sensor Type | ultrasonic sensor |
| Ambient Air Temperature For Operation | -25-70°C |
| Blind Zone | 105-105 mm |
| Sensor Design | cylindrical M18 |
| Deviation Angle From 90° Of Object To Be Detected | -10-10° |
| Package Quantity | 1 |
