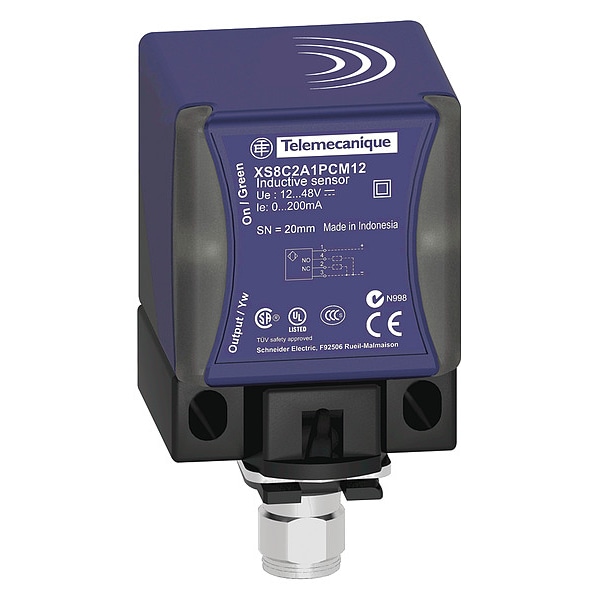

Dc Npn Nonc 4Wire Flush Sn 20Mm Conn M1
Traducción:
C.D. NPN NO/NC 4 hilos". Flush SN 20mm Conexión M1
| Item | Dc Npn Nonc 4Wire Flush Sn 20Mm Conn M1 |
|---|---|
| Proximity Sensor Style | Form 40 x 40 x 70 |
| Measurement Range | 0 to 16 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 4 Wire NPN |
| Output Mode | NO/NC |
| Length | 40 mm |
| Max. Detecting Distance | 20 mm |
| Width | 70 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 300 Hz |
| Max. Current Load | 200 mA |
| IP Rating | IP69K, IP67, IP65 |
| Standards | E2; CCC; UL; CSA; CE Marked |
| Description/Special Features | 5 Positions Turret Head Detection Face; Supply ON 1 LED Green; Output State 1 LED Yellow |
| Operating Temp. Range | -25 to 70 deg C |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Supply Voltage Limits | 10-58 V DC |
| Shock Resistance | 50 gn 11 msEN 60068-2-27 |
| Maximum Voltage Drop | <2 V closed) |
| Body Type | fixed |
| Application | mobile equipment; general purpose |
| Storage Temp. Range | -40-85 °C |
| Series | XS8 |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay First Up | 7.5 msec |
| Differential Travel | Sr, 3...15% |
| Maximum Delay Recovery | 1.8 msec |
| Maximum Delay Response | 1.2 msec |
| Package Quantity | 1 |
