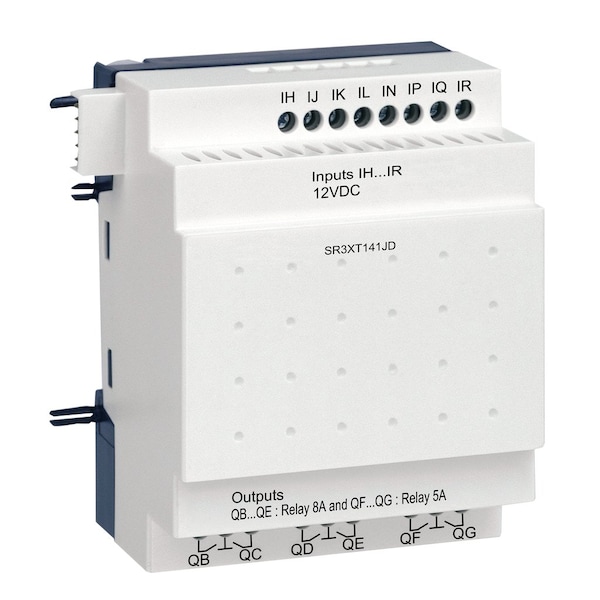

Módulo de extensión de E/S discretas, Zelio Logic SR2 SR3, 14 E/S, 12V DC
| Item | Discrete I/O extension module - 14 I O - |
|---|---|
| Number of Outputs | 6 relay |
| Standards | IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 61000-4-2 level 3, IEC 61000-4-4 level 3, IEC 60068-2-27 Ea, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-11, IEC 61000-4-5 |
| Response Time | 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Range of Product | Zelio Logic |
| Tightening Torque | 0.5 N.m |
| Cycle Time | 6 to 90 msec |
| Mechanical Durability | 10000000 cycles relay output |
| Electrical Durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Contacts Type And Composition | NO relay output |
| Overvoltage Category | III IEC 60664-1 |
| Input Impedance | 14 kOhm IB...IG used as discrete input circuit, 2.7 kOhm I1...IA and IH...IR discrete input circuit |
| Output Thermal Current | 5 A for 2 outputs relay output, 8 A for 4 outputs relay output |
| Operating Altitude | 6561.68 ft (2000 m) |
| Input Compatibility | 3-wire proximity sensors PNP discrete input |
| Discrete Input Number | 8 IEC 61131-2 Type 1 |
| Current State 0 Guaranteed | <= 0.2 mA IB...IG used as discrete input circuit), <= 0.9 mA I1...IA and IH...IR discrete input circuit) |
| Current State 1 Guaranteed | >= 2 mA I1...IA and IH...IR discrete input circuit), >= 0.5 mA IB...IG used as discrete input circuit) |
| Supply Voltage Limits | 10.4-14.4 V |
| Output Voltage Limits | 24...250 V AC relay output), 5...30 V DC relay output) |
| Counting Frequency | 1 kHz discrete input |
| Ambient Air Temperature For Operation | -20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2 |
| [Us] Rated Supply Voltage | 12 V DC |
| Discrete Input Voltage | 12 V DC |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Discrete Input Type | resistive |
| Pvc Free | Yes |
| Discrete Input Current | 4 mA |
| Connections - Terminals | screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid |
| Ambient Air Temperature For Storage | -40-70°C |
| Pollution Degree | 2 IEC 61131-2 |
| Product or Component Type | discrete I/O extension module |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Reverse Polarity Protection | with |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Environmental Characteristic | EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2 |
| Voltage State 0 Guaranteed | <= 3 V IB...IG used as discrete input circuit, <= 2.4 V I1...IA and IH...IR discrete input circuit |
| Clock Drift | 12 min/year 0-55°C |
| Maximum Altitude Transport | 3048 m |
| Number or Control Scheme Lines | 120-120 ladder |
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Ip Degree of Protection | IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel) |
| Voltage State 1 Guaranteed | >= 7 V IB...IG used as discrete input circuit, >= 5.6 V I1...IA and IH...IR discrete input circuit |
| Backup Time | 10 years 25°C |
| Product Certifications | GL || UL, GOST || C-tick || CSA |
| Checks | program memory on each power up |
| Package Quantity | 1 |
