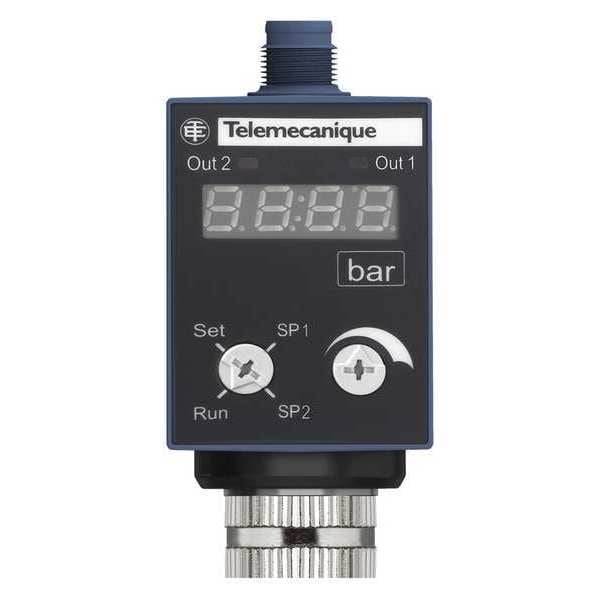

Sensor de presión/vacío eléctrico, NPN
| Item | Electronic Pressure Sensor |
|---|---|
| Range | -14.5 to 6,000 psi |
| Control Output | Dehumidification Capability |
| On/Off Setting | Programmable |
| Power Required | 24V DC |
| Electrical Connection | 2 Pin M12, 4 Pin M12 |
| Display | 4 Digit LED |
| Operating Temp. Range | - 13 Degrees to 158 Degrees F |
| IP Rating | IP67, IP69K, IP65 |
| Standards | cULus, EAC, EN/IEC 61326-2-3, EU RoHS, UL 61010-1, UL 508 |
| Housing Material | PBT |
| Overall Depth | 1.65 in |
| Overall Height | 3.03 in |
| Voltage Rating - Maximum | 24 V DC |
| Overall Width | 1.61 in |
| Operating Temperature - Maximum | 158 deg F |
| Series | ZMLP |
| Operating Temperature - Minimum | -13 deg F |
| Electrical Design Output | NPN |
| Package Quantity | 1 |
