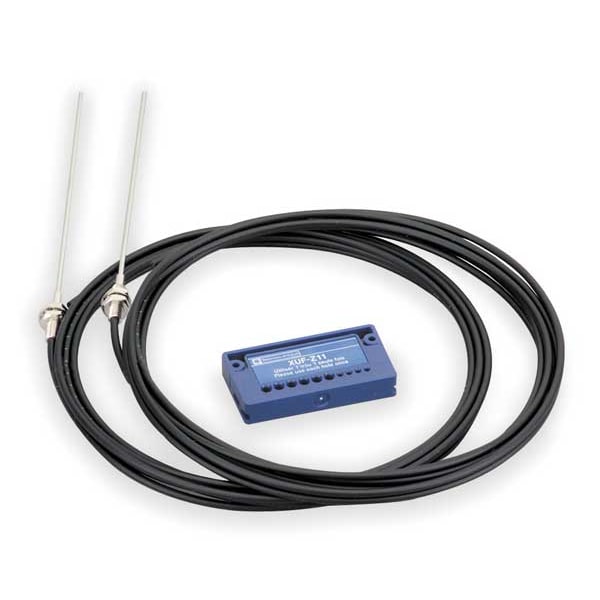

Cable de fibra óptica, difuso, 6-9/16 pies, 70 mm.
| Item | General Purpose Fiber Optic Cable |
|---|---|
| For Use With | XUYA Photoelectric Amplifier |
| Cable Length | 6 ft 6-3/4 in |
| Tip Type | Threaded |
| Cable Dia. | 2 mm |
| Fiber Material Core | Polymethyl Methacrylate |
| Sheath | Polyethylene |
| Standards | IEC Approval |
| Min. Object Size | 1 mm dia |
| Sensing Method | Diffuse |
| Max. Sensing Distance | 70 mm |
| Temp. Range | -13 Degrees to 140 Degrees F |
| Beam Dia. | 1.0 mm |
| Optic Fiber Material | PMMA |
| Ambient Air Temperature For Operation | -25-60°C |
| Ip Degree Of Protection | IP64 conforming to IEC 60529 || IP641 conforming to NF C 20-010 |
| Optic Fiber Core | 2 x Ø 1 mm |
| Sensor Name | XUF |
| Optic Fiber Length | 2 m |
| Optic Fiber Use | general use |
| Minimum Bending Radius | 25 mm |
| Vibration Resistance | +/- 1.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80°C |
| Sheath Material | PE |
| Electronic Sensor Type | photo-electric sensor |
| Thread Type | M6 x 0.75 |
| End Fitting Type | , standard thread end fitting |
| Sensor Design | fiber design |
| [Sn] Nominal Sensing Distance | 0.07-0.07 m |
| Detection System | diffuse |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| External Diameter | 2.2 mm |
| Product Destination | XUDA |
| Package Quantity | 1 |
