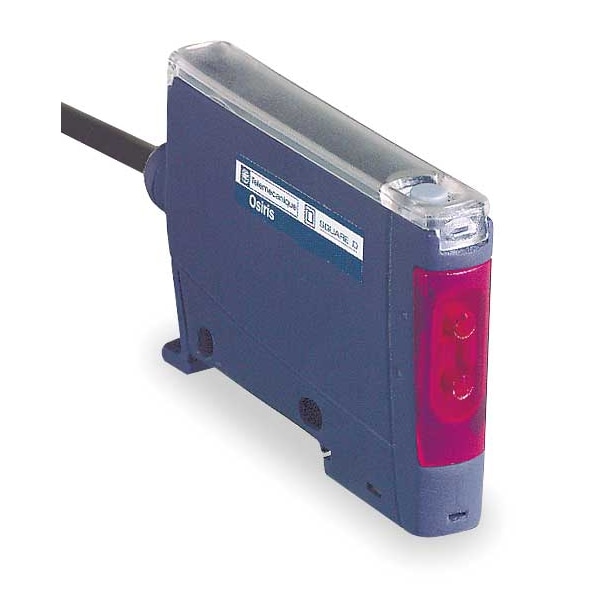

Sensor de fibra óptica, LED, PNP Normalmente Abierto/Cerrado, 1.57 pulgadas de alto.
| Item | Fiber Optic Sensor |
|---|---|
| Display | LED |
| Circuit Type | PNP NO/NC |
| IP Rating | 65 |
| Height | 1.57 in |
| Width | 0.39 in |
| Depth | 2.56 in |
| Max. Load Current | 100 mA |
| Operating Frequency | 1000 to 5000 Hz |
| Electrical Connection | M8 Connector |
| Operating Temp. Range | 13 to 131 deg F |
| Power Source | 12 to 24V DC |
| NEMA Rating | 1, 12,13, 3, 4, 6 |
| Response Time | 0.1 msec |
| Standards | CSA, EC, UL |
| Current Consumption | <= 50 mA no-load |
| Sensor Name | XUD |
| Switching Frequency | <= 1 kHz || <= 5 kHz |
| Maximum Delay First Up | 120 msec |
| Output Type | solid state |
| Wiring Technique | 3-wire |
| Time Delay Range | 0...40 s |
| Product Certifications | cULus || CE |
| Display Type | 4-digit |
| Maximum Voltage Drop | < closed |
| Cable Material | PVC |
| Supply Circuit Type | DC |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Add On Output | with alarm output, 50 mA overload protection || with alarm output, 50 mA short-circuit protection |
| Vibration Resistance | +/-0.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6 |
| Interference Protection | with |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Emission | red |
| Maximum Delay Response | 0.1 msec |
| Series Name | Application assembly |
| Ambient Air Temperature For Storage | -30-70°C |
| Ambient Air Temperature For Operation | -10-55°C |
| Specific Application Of Photoelectric Detector | object |
| Maximum Delay Recovery | 0.1 msec |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Enclosure Material | PBT |
| Setting-Up | sensitivity adjustment |
| Electronic Sensor Type | photo-electric sensor |
| Ip Degree Of Protection | IP64 optic fiber Ø 1 mm IEC 529 || IP65 optic fiber Ø 2 mm IEC 529 |
| Sensor Design | fiber design |
| Switching Capacity In Ma | <= 100 mA overload protection) || <= 100 mA short-circuit protection) |
| Lens Material | PMMA |
| Product Compatibility | glass or plastic fibre optics 1 mm or 2.2 mm |
| Discrete Output Type | PNP |
| Supply Voltage Limits | 10.8-26.4 V DC |
| Type Of Output Signal | discrete |
| Status Led | stability 1 LED green) || output state 1 LED yellow) |
| Package Quantity | 1 |
