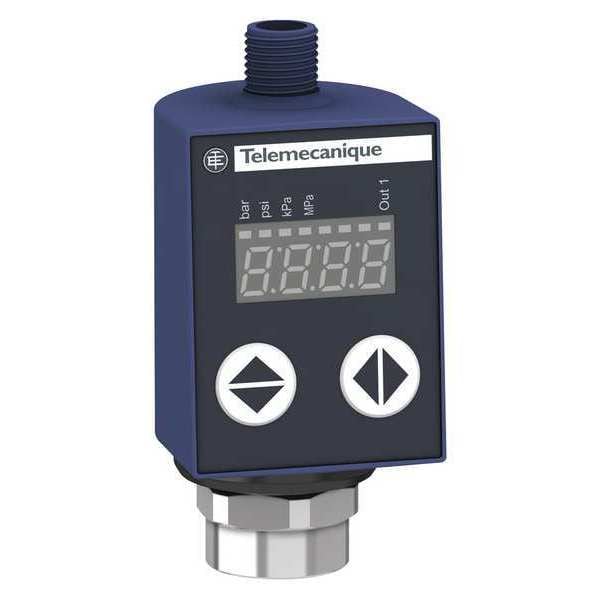

Sensor de presión de fluido y aire, programable NO/NC, de 0 a 3625 psi.
| Item | Fluid and Air Pressure Sensor |
|---|---|
| Pressure Switch Range | 0 to 3,625 psi |
| Pressure Switch Electrical Contact Form | NO/NC programmable |
| Pressure Switch Action | Pressure transmitter with 1 switching output |
| Housing Material | Polyacrylamide/Stainless Steel |
| Display | 4 Digit LED |
| On/Off Setting | Programmable |
| Analog Output | 4 to 20mA |
| Power Required | 24V DC |
| Max. Pressure | 21,755.6 psi |
| Wetted Materials | 316L Stainless Steel, Ceramic, Fluorocarbon |
| IP Rating | 65/67 |
| Range | 0 to 3,625 psi |
| Process Connection | 1/4 in NPT |
| Electrical Connection | 4 Pin M12 |
| Operating Temp. Range | - 4 Degrees to 176 Degrees F |
| Control Output | PNP |
| Standards | CE, CUL, UL |
| Differential | Fixed Differential Scale |
| Burst Pressure | 21,750 psi |
| Temp. Range | -4 to 176°F |
| Series | XMLR |
| Special Features | Local Signalling; Mercury Free; Short-circuit protection; Reverse polarity; Overvoltage protection; Overload protection |
| Accuracy | less than or equal to 1 % of the measuring range |
| Output | Solid state PNP, NO/NC programmable; Analogue + Discrete |
| Overall Width | 1.61 in |
| Overall Height | 3.46 in |
| Overall Depth | 1.65 in |
| Voltage Rating - Maximum | 24 V DC |
| Electrical Design Output | PNP |
| Pressure Connection Type | 1/4" DIN |
| Operating Temperature - Minimum | -4 deg F |
| Analog Output Current - Minimum | 4 mA |
| Proof Pressure | 21,750 psi |
| Operating Temperature - Maximum | 176 deg F |
| Pressure - Maximum | 3,620 psi |
| Analog Output Current - Maximum | 20 mA |
| Pressure - Minimum | 290 psi |
| Package Quantity | 1 |
