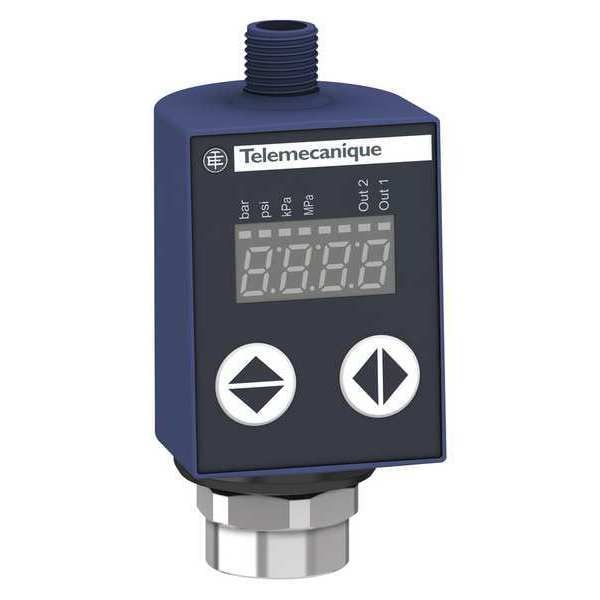

Sensor de presión de fluido/aire, 34809 psi, PNP
| Item | Fluid and Air Pressure Sensor |
|---|---|
| Range | 0 to 5,801 psi |
| Control Output | PNP |
| On/Off Setting | Programmable |
| Max. Pressure | 34,809 psi |
| Power Required | 24V DC |
| Process Connection | 1/4 in NPT |
| Electrical Connection | 4 Pin M12 |
| Display | 4 Digit LED |
| Operating Temp. Range | - 4 Degrees to 176 Degrees F |
| IP Rating | IP67, IP65 |
| Wetted Materials | Stainless Steel |
| Standards | CE, CSA, cULus, EU RoHS, UL Listed, UL 50, UL 508 |
| Housing Material | Stainless Steel, Polyacrylamide |
| Proof Pressure | 34,800 psi |
| Electrical Design Output | PNP |
| Pressure - Minimum | 464 psi |
| Overall Depth | 1.65 in |
| Pressure Connection Type | 1/4" DIN |
| Voltage Rating - Maximum | 24 V DC |
| Overall Width | 1.61 in |
| Overall Height | 3.46 in |
| Pressure - Maximum | 5,800 psi |
| Operating Temperature - Minimum | -4 deg F |
| Series | XMLR |
| Operating Temperature - Maximum | 176 deg F |
| Package Quantity | 1 |
