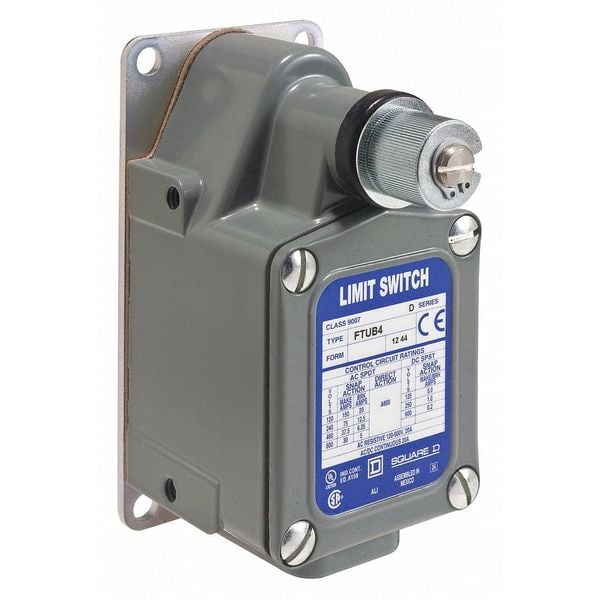

Interruptor de límite para fundición, sin palanca, rotativo, SPDT, 20A @ 600V AC, Ubicación del actuador: Superior.
| Item | Foundry Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 20 A @ 600 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Stem Thread - Limit Switch | No Stem |
| Actuator Location (Limit Switch) | Top |
| Mounting Hole Spacing - Limit Switch | 4.22 in x 1.81 in |
| Body Style (Limit Switch) | Standard |
| Basic Actuator Style (Limit Switch) | Rotary |
| Voltage Rating | 600VAC |
| Operating Force | 12.0 in-lb |
| Mounting Hole - Limit Switch | (4) 0.26 in dia |
| Standards | CCN, CSA Certified, File E42259, NKCR, UL Listed |
| Electrical Connection | Screw Terminals, 22 AWG |
| Limit Switch Style | Foundry Duty Limit Switch |
| Boot Sealed Actuator (Limit Switch) | No |
| Contact Form - Limit Switch | SPDT |
| DC Contact Rating | Not Rated |
| Certification | UL Listed, CSA Certified, CE Marked |
| Amps | 20 |
| Body Material | Cast Zinc |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Travel | Total Travel 88 Degrees |
| Movement | CW |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Height | 4.66 in |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Body Height - Limit Switch | 4.66 in |
| AC Contact Rating | 20 A @ 600 V |
| Contact Form | SPDT |
| Operating Temp. Range | -10 to 185 deg F |
| Actuator Style | Rotary Head |
| IP Rating | 67 |
| Body Depth - Limit Switch | 2.44 in |
| Series | 5SY4 |
| Boot Sealed Actuator - Limit Switch | No |
| Depth | 3.41 in |
| Wiring Entry | 1/2 in NPT |
| Special Features | Withstands 300 Degrees Falling Sand |
| Number of Poles | 1 |
| Body Width - Limit Switch | 2-1/4 in |
| Width | 2-1/4 in |
| Actuator Location | Top |
| Contact Material | silver flashed copper |
| Weight | 2.5 lb |
| Actuation Type | CW || from left |
| Vibration Resistance | 10 gn 10-55 Hz)IEC 60068-2-6 |
| Short Circuit Protection | 20 A Bussmann class CC KTK-R-21 fuse non-time delay |
| Contact Action | snap action |
| Head Type | rotary head |
| Min. Actuation Velocity Horizontal | 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only |
| Shock Resistance | 30 gn 9 ms IEC 60068-2-27 |
| Mounting Hole Diameter | 1/4 in |
| Operating Temperature - Minimum | -10 deg F |
| Mounting Hole Horizontal Center to Center Distance | 46 mm |
| Overall Width | 2-1/4 in |
| Body Height | 4.66 in |
| Boot Sealed Actuator | No Boot Included |
| NEMA Enclosure Rating | 4, 13, 1, 12, 2 |
| Number of Mounting Holes | 4 |
| Overall Depth | 3.41 in |
| Overall Height | 4.66 in |
| Includes Actuator | No Actuator Included |
| Manufacturer Warranty Length | 18 mo |
| Mounting Style | Surface |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Wireless Network Interface | Not Applicable |
| Directional Movement | CW |
| Pretravel | 14 Degrees |
| Operating Force - Maximum | Not Applicable |
| Body Depth | 2.44 in |
| Total Travel | 88 Degrees |
| Mounting Hole Vertical Center to Center Distance | 107 mm |
| Operating Torque - Maximum | 12 in-lb |
| Operating Temperature - Maximum | 185 deg F |
| Body Width | 2-1/4 in |
| Type Of Operator | spring return without operating lever |
| Package Quantity | 1 |
