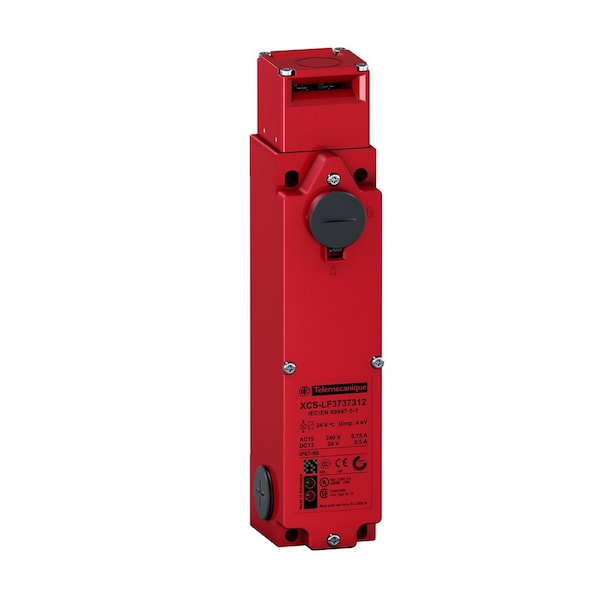

Interruptor de seguridad de metal con fusible XCSLF - 2 NC+4 NO- s, 24V, 1NC/2NO, 0.55 A @ 24V DC, 0.75 A @ 240V AC.
| Item | Metal safety switch XCSLF - 2 NC+4 NO- s |
|---|---|
| Protection Method | Fusible |
| Voltage | 24V |
| IP Rating | IP66 |
| Contact Form | 1NC/2NO |
| Amps AC | 0.55 A @ 24V DC, 0.75 A @ 240V AC |
| Material of Construction | Zamak |
| Width | 44 mm |
| Series | XCSLF |
| Operating Temp. Range | -25 to 60°C |
| Depth | 51 mm |
| Height | 205 mm |
| Standards | UL 508, EN/IEC 60204-1, EN/ISO 13849-1, EN 1088/ISO 14119, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 62061 |
| Weight | 1.1 kg |
| Electrical Connection | Spring Terminal |
| Features | Slim, Locking on De-Energisation and Unlocking on Energisation of Solenoid, Mercury Free |
| Number Of Poles | 3 |
| Package Quantity | 1 |
