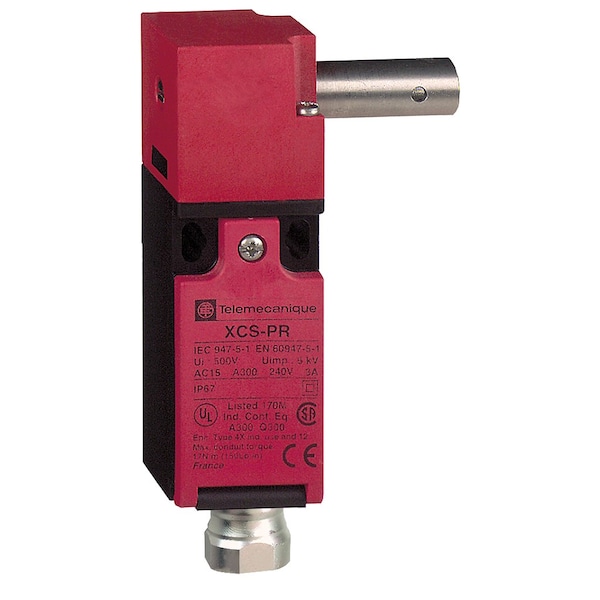

Interruptor de seguridad fusible, 1NC/1NC
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| IP Rating | IP67 |
| Contact Form | 1NC/1NC |
| Material of Construction | Fibre Glass Impregnated Polyamide |
| Width | 30 mm |
| Operating Temp. Range | -25 to 70°C |
| Depth | 60 mm |
| Standards | EN/IEC 60204-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN 1088/ISO 14119, EN/ISO 12100, EN/IEC 60947-5-1 |
| Height | 110 mm |
| Series | XCSPR |
| Operator | Spindle |
| Weight | 0.12 kg |
| Electrical Connection | Terminal |
| Features | Mercury Free |
| Number Of Poles | 2 |
| Package Quantity | 1 |
