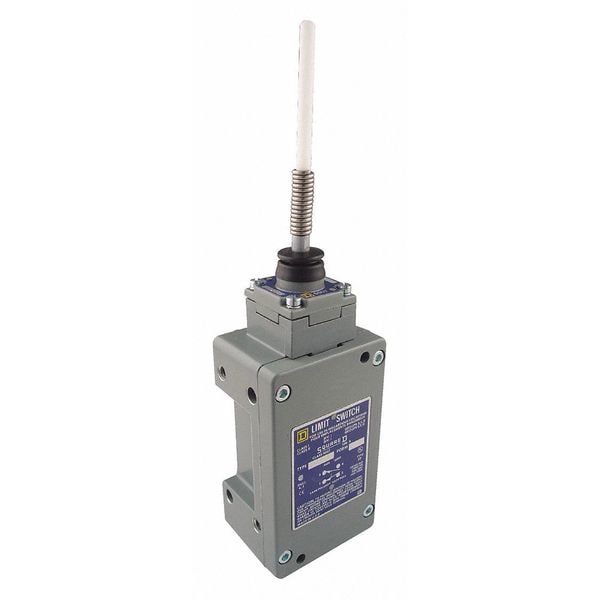

Interruptor de límite en ubicaciones peligrosas, palanca oscilante, 1NC/1NO, 10A @ 600V CA, Ubicación del actuador: Superior
| Item | Hazardous Location Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Wobble Stick |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 600 V |
| Amps | 10 |
| Body Material | aluminium, metal |
| Body Depth - Limit Switch | 2.08 in |
| Head Material | zinc |
| IP Rating | IP67 conforming to IEC 60529 |
| Standards | 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA |
| Contact Form | Form Z |
| Movement | multi-directional |
| Special Features | multi-directional approach, multi-directional approach |
| Series | 9007CR |
| Contact Material | silver contacts |
| Width | 2.72 in |
| Body Height - Limit Switch | 10.35 in |
| Actuator Style | Wobble Stick |
| Body Style (Limit Switch) | fixed |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12), 1-2 |
| NEMA Rating | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Operating Temp. Range | -20-185 °F hazardous location |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Electrical Durability | 1000000 cycles |
| Contact Action | snap action |
| Short Circuit Protection | 10 A CC non-time delay |
| Mechanical Durability | 10,000,000 cycle |
| Head Type | multi-directional head |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Weight | 2.5 lb |
| Actuation Type | by any moving part |
| Pretravel | 10 Degrees |
| Total Travel | 90 Degrees |
| Arm Length - Minimum | Not Applicable |
| Operating Force - Maximum | 3 lbf |
| Arm Length - Maximum | Not Applicable |
| Number Of Poles | 1 |
| Type Of Operator | acetal resin spring return wobble stick |
| Package Quantity | 1 |
