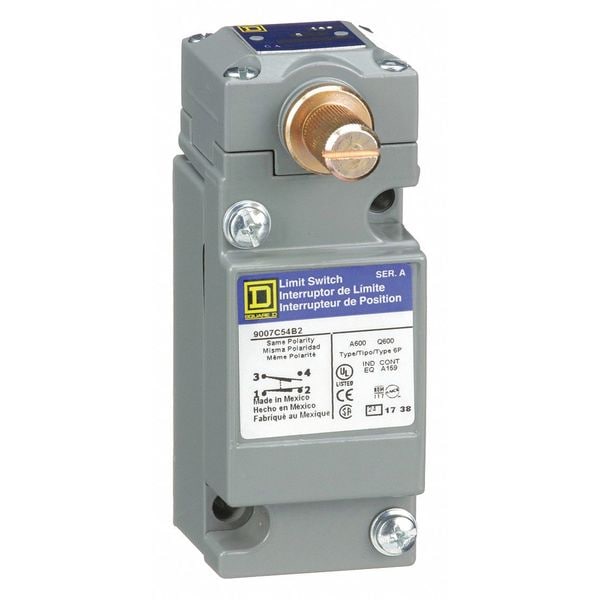

Interruptor de límite resistente, sin palanca, rotativo, 1NC/1NO, 10A @ 600V CA, GIRO IZQUIERDA/DERECHA.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 600 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Style | Rotary Head, No Lever |
| Amps | 10 |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Contact Form | 1NC, 1NO |
| Body Width - Limit Switch | 0.83 in |
| Actuator Location | Side |
| Body Depth - Limit Switch | 1.14 in |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Contact Form - Limit Switch | 1NO, 1NC |
| IP Rating | 67 |
| Stem Thread - Limit Switch | No Stem |
| Basic Actuator Style (Limit Switch) | Rotary |
| Operating Force | 4.0 in-lb |
| DC Contact Rating | 10 A @ 600 V |
| Standards | CE, CSA, UL |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 2.35 in x 1.17 in |
| Body Height - Limit Switch | 2-1/2 in |
| Limit Switch Style | Heavy Duty Limit Switch |
| Operating Temp. Range | -20 to 185 deg F |
| Electrical Connection | Screw Terminals |
| Movement | CCW, CW |
| Actuator Location (Limit Switch) | Side |
| Travel | Total Travel 90 Degrees |
| Boot Sealed Actuator - Limit Switch | No |
| Width | 1.55 in |
| Series | 9007C |
| Height | 4.02 in |
| Depth | 1.79 in |
| Wiring Entry | 1/2 in NPT |
| Body Material | Zinc |
| Voltage Rating | 600VAC/DC |
| AC Contact Rating | 10 A @ 600 V |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Head Material | zinc |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Contact Material | silver contacts |
| Mechanical Durability | 10,000,000 cycle |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Short Circuit Protection | 10 A CC non-time delay |
| Electrical Durability | 1000000 cycles |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Actuation Type | CW and CCW || from left and right |
| Weight | 1.25 lb |
| Head Type | rotary head |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only |
| Contact Action | snap action |
| Wireless Network Interface | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Torque - Maximum | 4 in-lb |
| Body Depth | 1.14 in |
| Overall Depth | 2-1/2 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Mounting Hole Diameter | 0.2 in |
| Boot Sealed Actuator | No Boot Included |
| Overall Height | 4.02 in |
| Number of Mounting Holes | 2 |
| Body Width | 0.83 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 2 |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Operating Temperature - Minimum | -20 deg F |
| Mounting Style | Surface |
| Body Height | 2-1/2 in |
| Directional Movement | CW, CCW |
| Overall Width | 1.55 in |
| Includes Actuator | No Actuator Included |
| Operating Temperature - Maximum | 185 deg F |
| Body Configuration | Plug-In |
| Pretravel | 10 Degrees |
| Total Travel | 90 Degrees |
| Number Of Poles | 1 |
| Products By Industry | Electrical;Fabricated Metals |
| Type Of Operator | zinc spring return without operating lever 9007C lever |
| Package Quantity | 1 |
