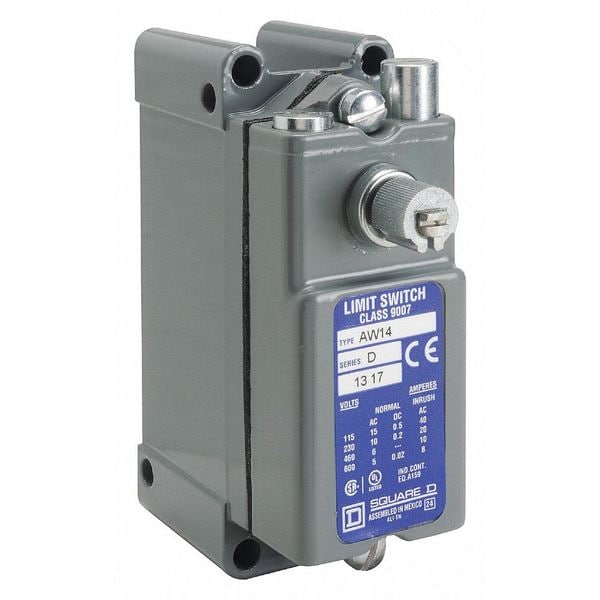

Interruptor de límite de alta resistencia, sin palanca, rotativo, 1NC/1NO, 15A @ 600V CA, Ubicación del actuador: Lateral.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| DC Contact Rating - Limit Switch | 15 A @ 600 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Stem Thread - Limit Switch | No Stem |
| Series | 9007AW |
| Operating Temp. Range | -65 to 185 deg F |
| Contact Form - Limit Switch | 1NO, 1NC |
| Actuator Style | Rotary Head, No Lever |
| Travel | Total Travel 300 Degrees |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| Contact Form | 1NC, 1NO |
| Electrical Connection | Screw Terminals |
| Limit Switch Style | Heavy Duty Limit Switch |
| AC Contact Rating | 15 A @ 600 V |
| Movement | CCW, CW |
| Body Width - Limit Switch | 3 in |
| Boot Sealed Actuator - Limit Switch | No |
| Standards | CE, CSA, UL |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Body Material | Zinc |
| Wiring Entry | 1/2 in NPT |
| Height | 3.91 in |
| Actuator Location (Limit Switch) | Side |
| Body Depth - Limit Switch | 1.44 in |
| Actuator Location | Side |
| Operating Force | 2.75 in-lb |
| Boot Sealed Actuator (Limit Switch) | No |
| Basic Actuator Style (Limit Switch) | Rotary |
| DC Contact Rating | 15 A @ 600 V |
| Amps | 15 |
| Body Height - Limit Switch | 3.68 in |
| IP Rating | 65 |
| Depth | 1.4 in |
| Voltage Rating | 600VAC/DC |
| Width | 3 in |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Body Style (Limit Switch) | Standard |
| Special Features | lateral approach, 1 direction programmable |
| Differential Travel | 2.5 Degrees |
| Contact Material | silver contacts |
| Head Type | rotary head |
| Weight | 1.25 lb |
| Actuation Type | CCW convertible to CW || from left convertible to right |
| Contact Action | snap action |
| Min. Actuation Velocity Horizontal | 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only |
| Operating Temperature - Minimum | -65 deg F |
| Body Height | 3.68 in |
| Body Width | 3 in |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Vertical Center to Center Distance | 89 mm |
| Boot Sealed Actuator | No Boot Included |
| NEMA Enclosure Rating | 4, 13, 1, 12, 2 |
| Mounting Style | Surface |
| Includes Actuator | No Actuator Included |
| Operating Temperature - Maximum | 185 deg F |
| Overall Height | 3.68 in |
| Overall Depth | 1.44 in |
| Arm Length - Maximum | 1.38 in |
| Wireless Network Interface | Not Applicable |
| Body Depth | 1.44 in |
| Directional Movement | CW, CCW |
| Operating Torque - Maximum | 2.75 in-lb |
| Total Travel | 30 Degrees |
| Manufacturer Warranty Length | 18 mo |
| Number of Mounting Holes | 6 |
| Pretravel | 5 Degrees |
| Overall Width | 3 in |
| Mounting Hole Horizontal Center to Center Distance | 27 mm |
| Overtravel | 25 Degrees |
| Type Of Operator | spring return without operating lever cast zinc |
| Number Of Poles | 1 |
| Package Quantity | 1 |
