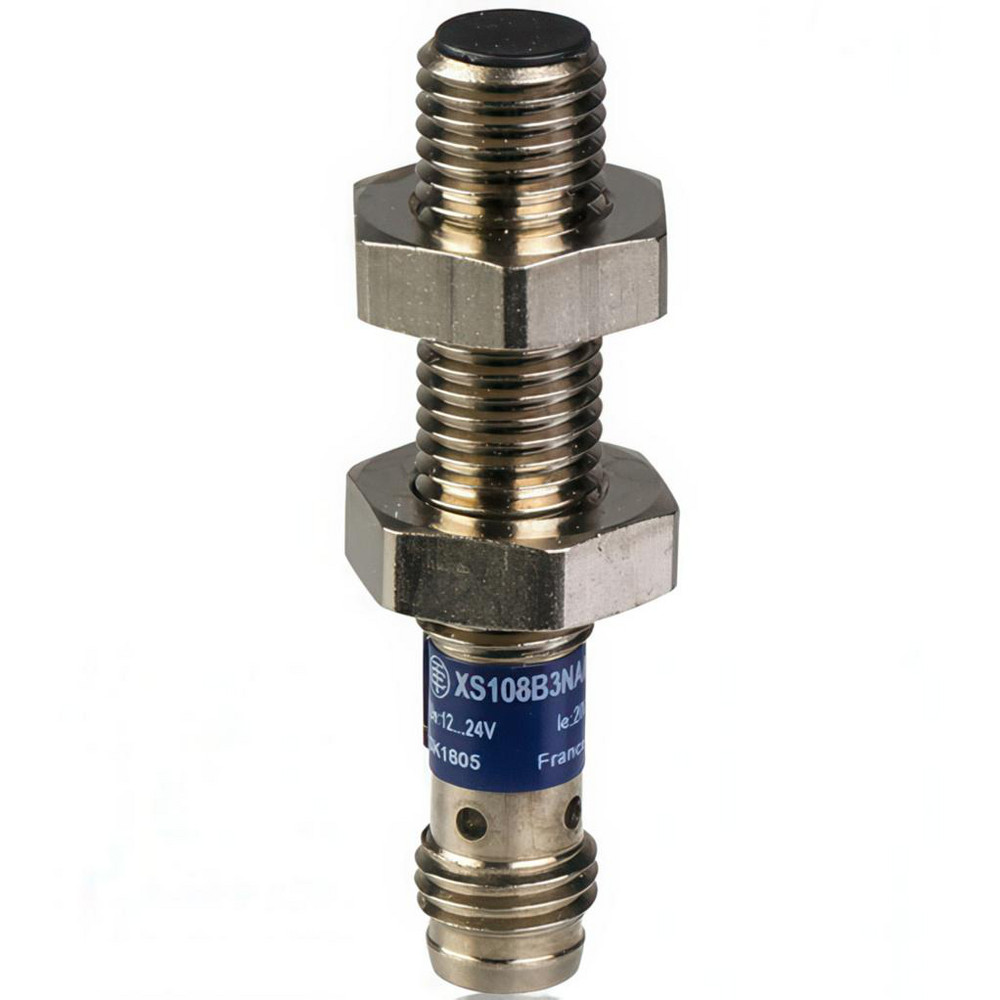

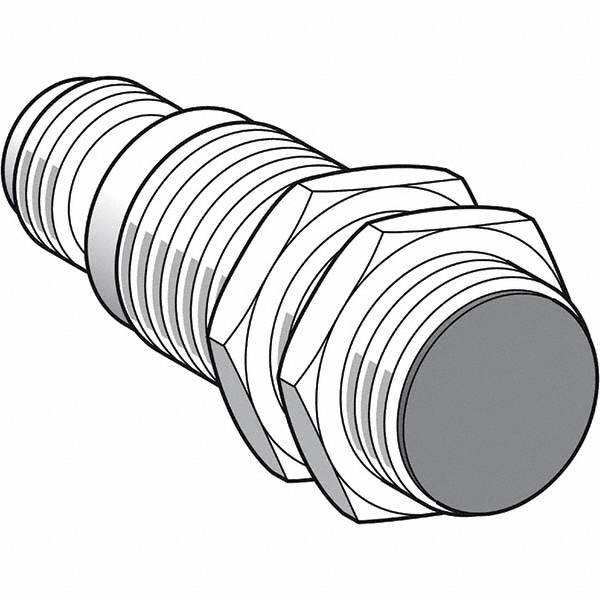

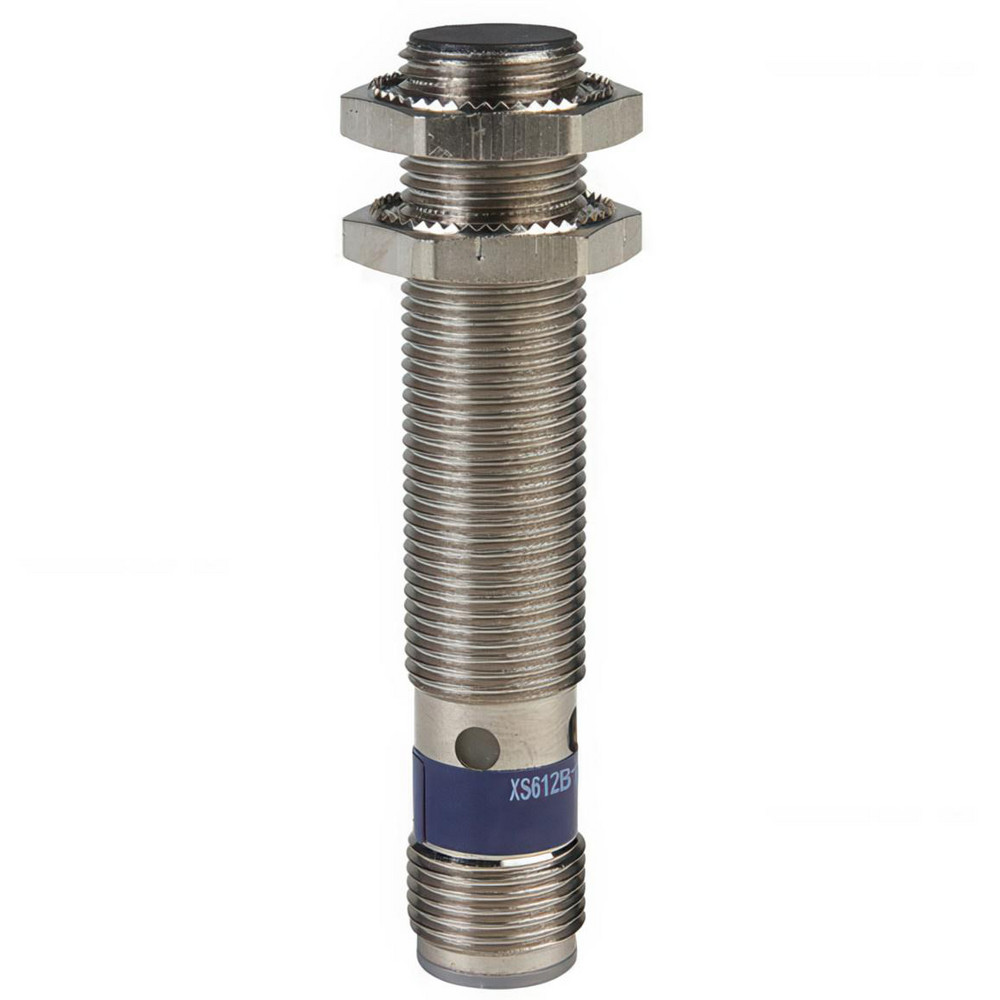

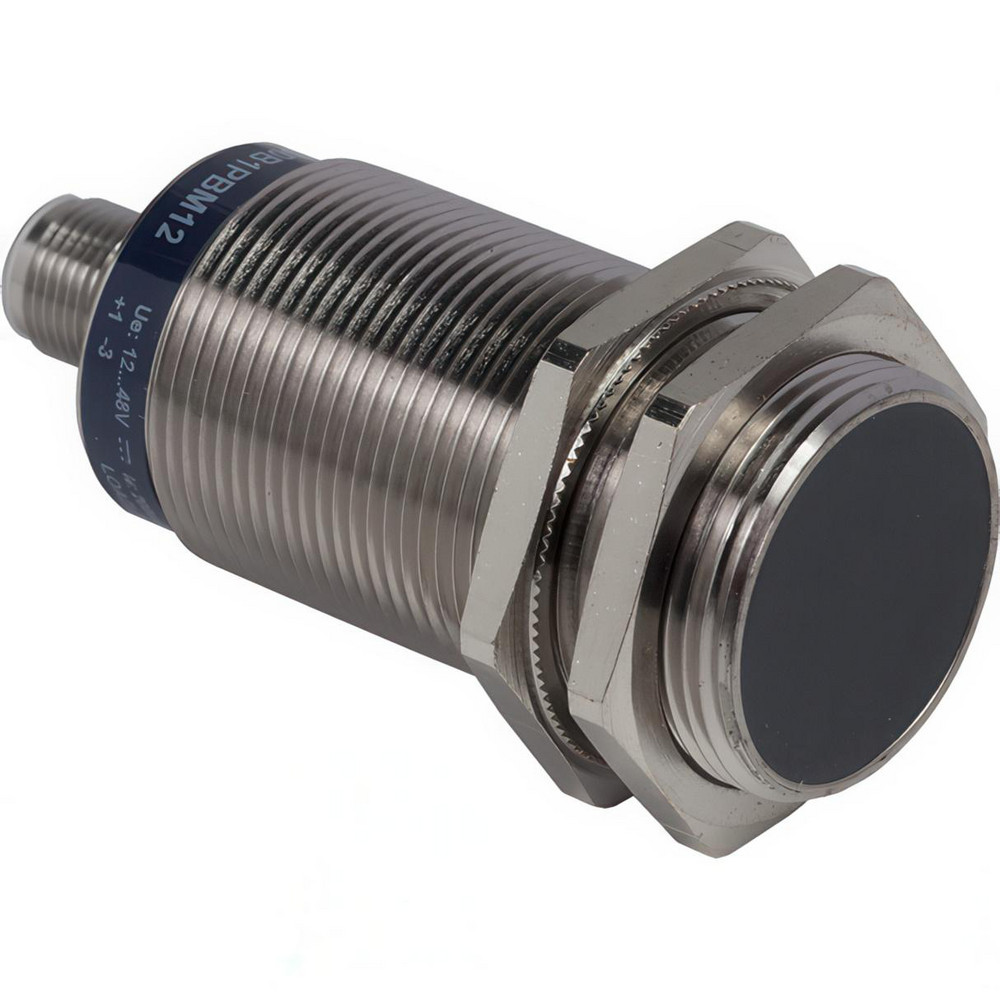

24 to 240 VAC/VDC at 50/60 Hz Max, NPN & PNP, 2 Wires, 25 & 1,000 Hz
| Sensor Type | Inductive |
|---|---|
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | PNP; NPN |
| Connector Type | Three-Pin; Male |
| Detection Distance (mm) | 15.00 |
| Maximum Voltage | 24 - 240V AC/V DC at 50/60 Hz |
| Overall Length (mm) | 75.00 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 5 to 300; 5 to 200 |
| Thread Size | M30x1.5 |
| Housing Material | Polyphenylene Sulfide |
| Resistance Features | Shock-Resistant; Vibration-Resistant |
| Standards | CSA; CCC; IEC 60068-2-6; UL; IEC 60529; RoHS Compliant; IEC 60068-2-27 |
| Number Of Wires | 2 |
| Response Frequency (Hz) | 25; 1000 |
| UNSPSC Code | 39122230 |
| undefined | undefined |
| MSC Number | MSC# 56687890 |
