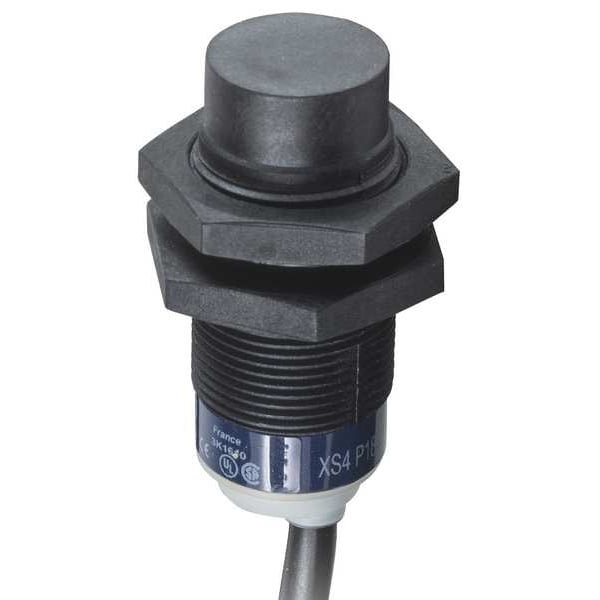

Sensor inductivo 24V 20mA Xs + Opciones
| Item | Inductive Sensor 24V 20Ma Xs +Options |
|---|---|
| Proximity Sensor Style | Cylindrical M18 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0.8 to 8 mm |
| Proximity Sensor Power Requirement | 12 to 24VCD |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NC |
| Proximity Sensor Diameter | 18 mm |
| Length | 41 mm |
| Max. Detecting Distance | 8 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 18 mm |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | PBT, PPS |
| Proximity Sensor Operating Frequency | 500 Hz |
| Case Material | PBT |
| Max. Current Load | 4 mA |
| IP Rating | 67 |
| Standards | UL, CSA |
| Description/Special Features | Frontal Detection Face |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 41 mm |
| Series | XS4 |
| Supply Voltage Limits | 10-38 V DC |
| Application | Application |
| Body Type | fixed |
| Package Quantity | 1 |
