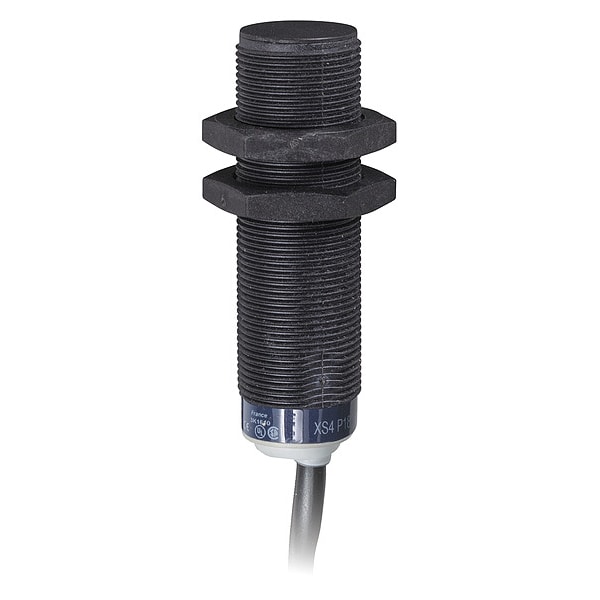

Sensor inductivo 24Vac 300mA Xs + Opciones
| Item | Inductive Sensor 24Vac 300Ma Xs +Options |
|---|---|
| Proximity Sensor Style | Cylindrical M18 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 6.4 mm |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 2-Wire AC/DC |
| Output Mode | 1 NO |
| Length | 62 mm |
| Max. Detecting Distance | 8 mm |
| Depth | 18 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 2000 Hz DC; Less than Or Equal to 25 Hz AC |
| Operating Temp. Range | -25 to 70 deg C |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Standards | CCC; Ecolab; CSA; UL; CE Marked |
| IP Rating | IP68 |
| Series | XS4 |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Supply Voltage Limits | 20-264 V AC, DC |
| Application | General Purpose |
| Maximum Delay Recovery | 0.2 msec |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Body Type | fixed |
| Maximum Delay Response | 0.2 msec |
| Switching Capacity | 5...200 mA DC || 5...300 mA AC |
| Maximum Voltage Drop | <5.5 V closed) |
| Storage Temp. Range | -40-85 °C |
| Differential Travel | Sr, 1...15% |
| Maximum Delay First Up | 40 msec |
| Package Quantity | 1 |
