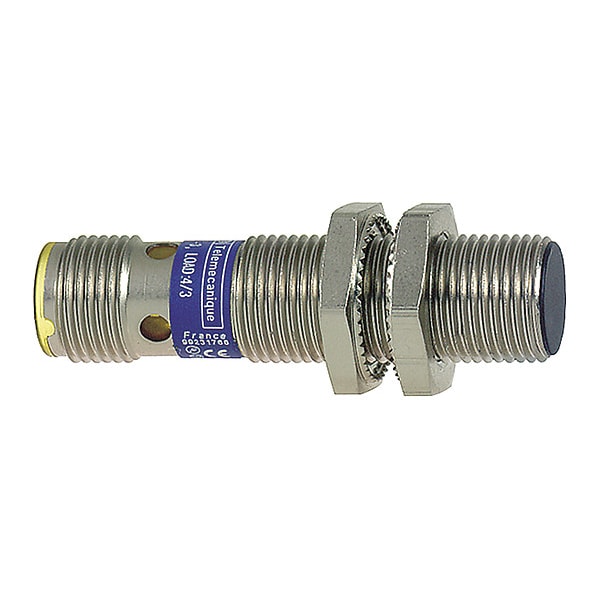

Sensor inductivo 24Vcc 200mA Xs + Opciones
| Item | Inductive Sensor 24Vdc 200Ma Xs +Options |
|---|---|
| Proximity Sensor Style | Cylindrical M12 |
| Measurement Range | 0 to 1.6 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 4-Wire DC PNP |
| Output Mode | 1 NO + 1 NC |
| Length | 50 mm |
| Max. Detecting Distance | 2 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 5000 Hz |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| IP Rating | IP69K, IP67, IP65 |
| Max. Current Load | 10 mA |
| Standards | IEC 62061; EN/ISO 13849-1; E2; CSA; TÃœV; UL; SIL 2 EN/IEC 61508; PL = d EN/ISO 13849-1; SILCL 2 IEC 62061; CE Marked |
| Operating Temp. Range | -25 to 70 deg C |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Voltage Drop | <2 V closed) |
| Supply Voltage Limits | 9-36 V DC |
| Storage Temp. Range | -40-85 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Application | mobile equipment; general purpose |
| Maximum Delay Recovery | 0.1 msec |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Maximum Delay First Up | 5 msec |
| Body Type | fixed |
| Maximum Delay Response | 0.1 msec |
| Series | XS1 |
| Differential Travel | Sr, 1...15% |
| Package Quantity | 1 |
