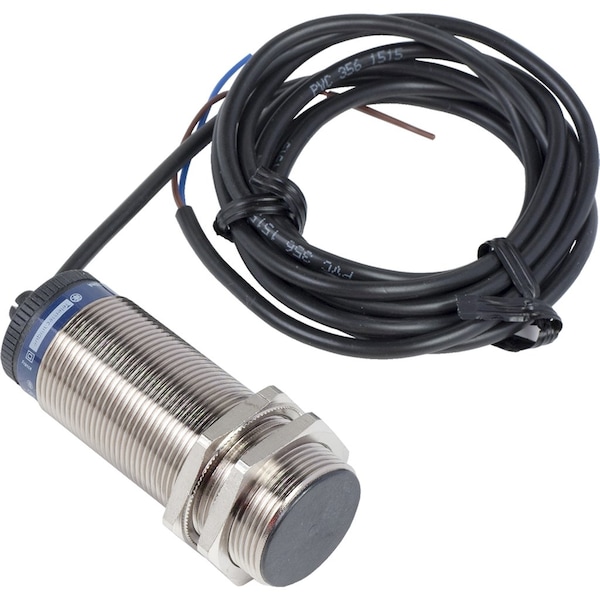

Sensor inductivo 264V 15Ma Xs +Opciones
| Item | Inductive Sensor 264V 15Ma Xs +Options |
|---|---|
| Proximity Sensor Style | Cylindrical M30 |
| Measurement Range | 8 to 15 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 210 V DC, 24 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2-Wire AC/DC |
| Output Mode | 1 NC |
| Length | 81 mm |
| Max. Detecting Distance | 10 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 100 Hz |
| Standards | UL; CCC; CSA; CE Marked |
| Operating Temp. Range | -40 to 70 deg C |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Red |
| IP Rating | IP67 |
| Application | rotation monitoring |
| Maximum Voltage Drop | <5.7 V closed) |
| Series | XSA |
| Switching Capacity | 5...200 mA DC || 5...350 mA AC |
| Storage Temp. Range | -40-85 °C |
| Supply Voltage Limits | 20-264 V AC, DC |
| Body Type | fixed |
| Differential Travel | 3...15% of Fr |
| Package Quantity | 1 |
