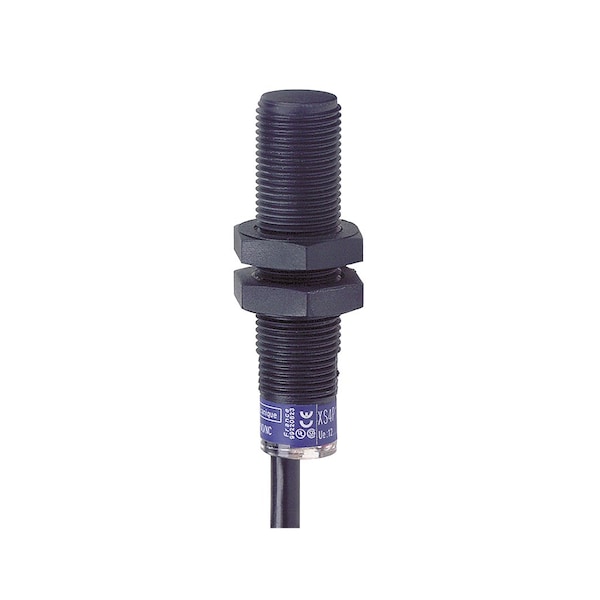

Sensor inductivo 264Vac 200mA Xs
| Item | Inductive Sensor 264Vac 200Ma Xs |
|---|---|
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Length | 52 mm |
| Max. Detecting Distance | 4 mm |
| Proximity Sensor Electrical Connection | Cable |
| Basic Proximity Sensor Case Material | PPS |
| Proximity Sensor Operating Frequency | Less than Or Equal to 25 Hz AC; Less than Or Equal to 3000 Hz DC |
| Standards | CSA; Ecolab; UL; CE Marked |
| IP Rating | IP68 |
| Description/Special Features | Output State 1 LED Yellow |
| Maximum Voltage Drop | <5.5 V closed) |
| Supply Voltage Limits | 20-264 V AC, DC |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Switching Capacity | 5...200 mA AC/DC |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Package Quantity | 1 |
