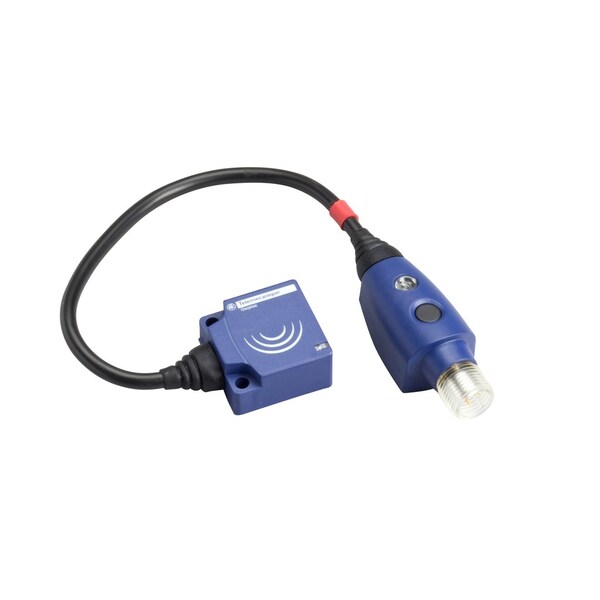

Sensor inductivo 36Vcc 200mA Xs
| Item | Inductive Sensor 36Vdc 200Ma Xs |
|---|---|
| Proximity Sensor Style | Flat Form 26 x 26 x 13 |
| Measurement Range | 8 to 15 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NC |
| Length | 26 mm |
| Width | 26 mm |
| Max. Detecting Distance | 10 mm |
| Proximity Sensor Electrical Connection | Male Connector |
| Depth | 13 mm |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 800 Hz |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 70 deg C |
| Description/Special Features | Frontal Detection Face; Supply ON 1 LED Green; Output State 1 LED Yellow |
| Standards | UL; CSA; CE Marked |
| IP Rating | IP67 |
| Application | rotation monitoring |
| Differential Travel | 3...15% of Fr |
| Switching Capacity | <= 100 mA |
| Storage Temp. Range | -40-85 °C |
| Series | XS9 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Maximum Voltage Drop | <2 V closed) |
| Supply Voltage Limits | 10-36 V DC |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Body Type | fixed |
| Package Quantity | 1 |
